Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Food
- Packaging Type: Cartons
- Packaging Material: Plastic, Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 1.5kw
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Proman
- Model Number: BGF
- Dimension(L*W*H): 2200X2100X2200MM
- Weight: 500kg
- Certification: ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: SUS304
- Certificate: Ce,ISO,SGS
- Composition: Filling Machine
- Electrics: Siemens,Mitsubishi,etc
- Bottle Volume: 200ml-2000ml
- Capacity: 2000bph to 15000bph
- Warranty: Two Years
- Exchange Parts: Free
- Shipping Term: By sea
- Filling material: Flowing Liquid

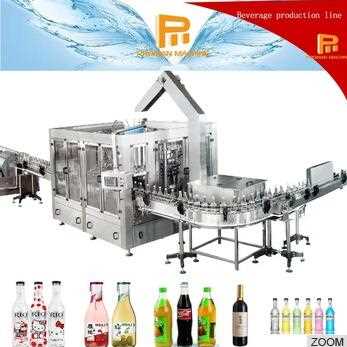

Beverage filling and sealing for glass bottle and crown cover.This machine adopts international advanced technology,scientific and reasonable design,beautiful appearance,complete functions,convenient operation and maintencance,high degree of automation,is the first choice for small and medium sized beverage
Performance characteristics:
1. The filling valve adopts high precision mechanical filling valve, which has the vacuum mechanism without flask.
2.External mechanical valve structure with no spring and sealing in the body.
3. Have two vacuum capacity, with high pressure foaming device.
4. Transmission adopts open gear and gearbox assembly drive.The variable frequency speed adjustment is adopted, and the speed of adjustment is large.
5. The drive of the machine is equipped with lubricating grease automatic lubricating device, which can be supplied to each lubrication point at a time of need.High transmission efficiency, low noise,
Life is long.
6. The wine valve is automatically shut off and equipped with an automatic bottle flushing device when the bottle is caused by the quality of the bottle in the case of gas or irrigation.
Use all stainless steel magnetic hopper, crown cover, lower cover, and cover of the crown are transmitted by magnetic force
Large and open, the pressure is reliable and automatic unloading function is reduced.
8. The guide adopts double guide rod pair, which has the preface function.The bottle is stable and reliable.
9. The lifting and lifting of the wine cylinder and the pressure head are the electric lifting and lifting to fit the bottle shape of different height in the design range.
10. The liquid level of the filling cylinder is controlled by the electric probe, the cylinder level is stable and the filling is reliable.
Our main products have: Water filling production line, water treatment system,juice filling production line, carbonated drinks production line, and also 5Gallon bottle filling production line, and all other auxiliary equipments.
Every year we attend the exhibitions, like Canton fair, PROPAK, and other exhibitions in Dubai, Kenya, Saudi Arabia and Algeria and etc., that time we always visit some local old customers and we are sure that we can offer more and better services than other supplier.
We warmly welcome customers all over the world visit our factory!
