  • PLC hydraulic oil hydraulic filter press machine

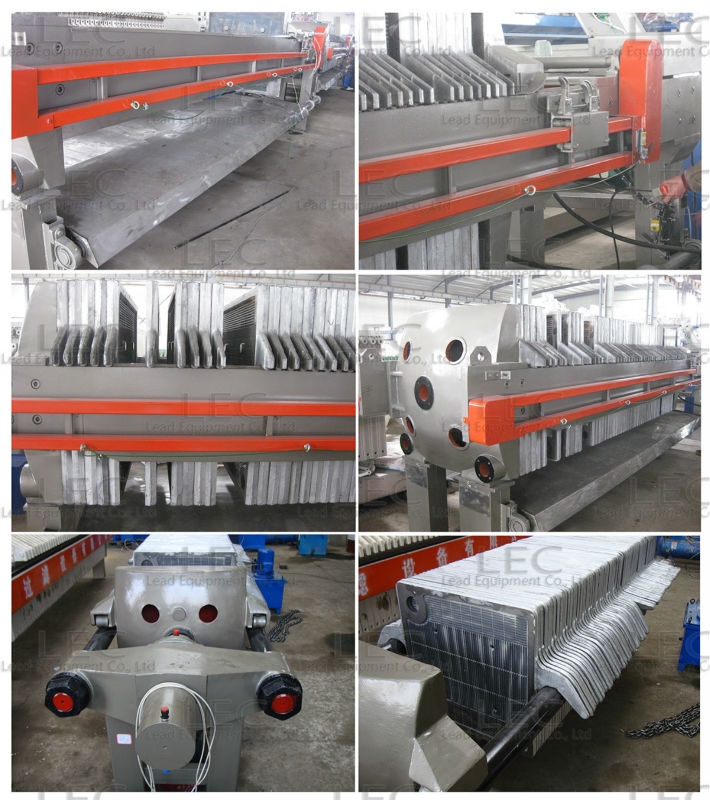

PLC hydraulic oil hydraulic filter press machine

The automatic dewatering filter press is a heavy duty machine, developed for filtration of ? metallic minerals ? industrial minerals ? coal and tailings.

Product Details

Quick Details Parameter

Power(W) : 1.1 kw, 1.5 kw, 2.2 kw, 3 kw

Description

Quick Details

  • Condition: New
  • Automatic Grade: Automatic
  • Production Capacity: 100 ton/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LEC
  • Model Number: BY
  • Voltage: as you require
  • Power(W): 1.1 kw, 1.5 kw, 2.2 kw, 3 kw
  • Weight: 4500-56000 kg
  • Dimension(L*W*H): 5100*1500*1360, 5300*1590*1600, 14120*2800*2300 mm3
  • Certification: ISO 9001, CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • meachine type: filter press mashine
  • filtrate area: 1-180 m2
  • plate size: 320-1130
  • cake thickness: 320
  • chamber vol.: 13-1210
  • plate number: 4-62 pcs
  • frame number: 5-63 pcs
  • filtrate pressure: 0.6 mpa
  • color: customized
  • frame material: cast iron

Packaging & Delivery

Packaging Details PLC hydraulic oil hydraulic filter press machine: in wooden case or in standard container
Delivery Time 15 days after receiving the advance payment


oil hydraulic filter press machine

PLC hydraulic oil hydraulic filter press machine







♦Simple mechanical construction:

The automatic dewatering filter press is a heavy duty machine, developed for filtration of

• metallic minerals

• industrial minerals

• coal and tailings.





♦Smart fully automatic contrl system





♦High unit capacity





♦Low dewatering cost with the membrane technology





♦Low maintenance cost





♣Main benefits:

• Lightweight polypropylene filter plates are mounted on a bolted steel frame and are moved by hydraulic cylinders.

• Adjacent "filter and compression" plates form a filtration chamber, the filter cloths hang between each pair of plates.

• By mounting the filter on a load cell system the filtration cycle is monitored and controlled.

• Chamber are center feeding for optimum filling.

• Openings for pulp, water and air are generously dimensioned to reduce energy losses and wear

• Service and maintenance requirements are low, the design facilitates easy cloth changing.

• Air blow pressure 5~8bar(73~116psi)

• Membrane pressure 6~9 bar (87~131psi)

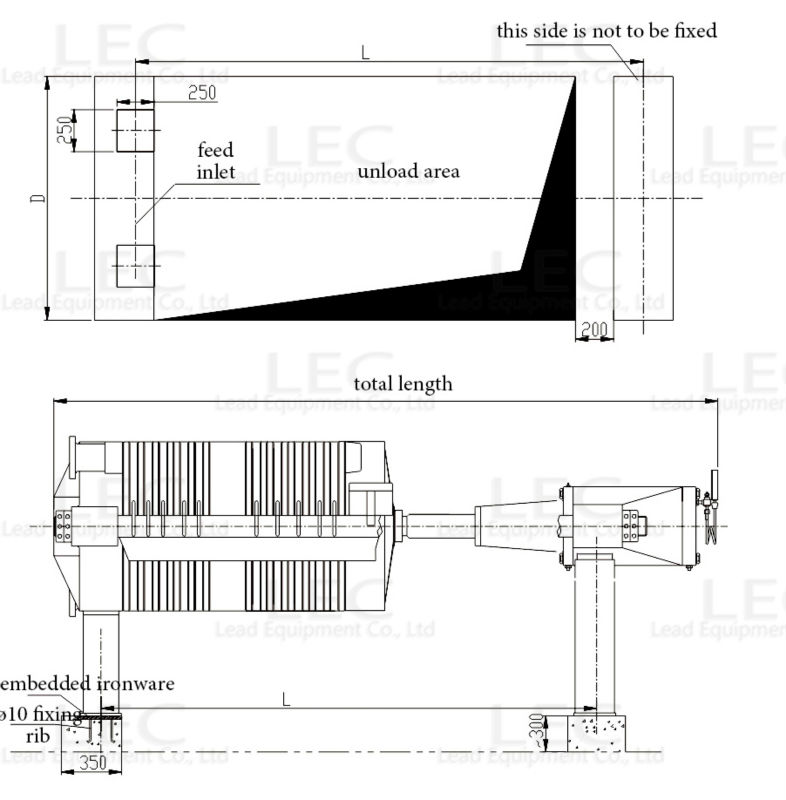

structure of oil hydraulic filter press machine











technical data of oil hydraulic filter press machine





800-1200 Fully Automatic Van type



 320/450/630 Plate type, Van type



800 Plate type, Van type









our factory



working occasion
