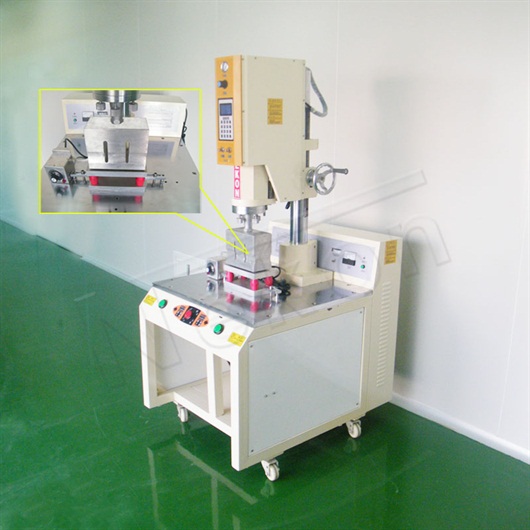

• NK-T1526 Ultrasonic Hot Fix Machine

NK-T1526 Ultrasonic Hot Fix Machine

NK-T1526 Ultrasonic Hot Fix Machine also could be called ultrasonic rhinestone setting machine,widely used in the fields of cloth industry, artwork ornaments industry, package industry.

Product Details

Quick Details Parameter

Dimension: : 1000*850*2000mm
Voltage: : 220V
Frequency: : 15KHZ
Power: : 2600W
Output: : 30-40pcs/min
Air Pressure: : 4-6kg/cm2
Weight: : 180kg


Working Principle:

Ultrasonic hot fix machine also could be called ultrasonic rhinestone setting machine, ultrasonic stone fixing machine,  ultrasonic fix setting machine, ultrasonic hot fix setting machine, shoes upper rhinestone hot fix machine, rhinestone hot fix machine, rhinestone hot fix setting machine, rhinestone fixing machine, hot fix machine, rhinestone paste machine, stone welding machine, sheet welding machine.

Ultrasonic piezoelectric signal caused by ultrasonic generator transferred to mechanical energy through piezoelectric transducer. And the mechanical energy induce work piece grind on the welding surface with high speed, so the grind heat welding the plastic of contact surface to lead two parts together. The welding is stable because of direct weld between components and weld surface.

The traditional hot fix drilling, not stable enough and easy to burn the material, lead leather yellow easily deformed and can’t be washed, easy to fall off, the Division through continuous research, developed ultrasonic hot machine, using ultrasonic Principle, weld one large area diamond in the materials on the surface, the solidity and efficiency are several times more than traditional methods.


1. Automatic frequency tracking, overload protection device, quality and stability;
2. Concentric straight axle design, the minimum degree of backwards, horizontal and vertical precision is effective to avoid damage to the diamond;
3. Powerful output, welding surface is larger, diamond-solid, surface appearance, efficiency is 3-5 times that of traditional methods;
4. Adjustment is simple, constant temperature configuration, to avoid excess plastic diamond, the phenomenon of hot diamond drill or not strong infiltration
5. Traditional leather hot plate heating method to heat the diamond to achieve the purpose of melting with the glue, but this method is easy to make leather deformation, yellow, diamond easy to fall off. These problems can be solved by using ultrasonic hot fix machine.
NK-T1526 Ultrasonic Hot Fix Machine

Company Profile

Dongguan City South Nekon Machinery Co., Ltd. is a high-tech joint venture and is located in the beautiful Shipai Town of Dongguan, with extremely convenient transportation. Since the establishment, our company has been dedicated to the optimization and integration of the development, manufacture, sale, service and application technology of ultrasonic machinery, providing quality products and the best solutions for users.

Our company has established cooperation with several scientific research institutes at home and abroad, collected the elites in ultrasonic equipment industry and has developed diversified quality ultrasonic equipment which features world leading technology. After 20 years of effort, Nekon has earned high confidence from users, and our registered "Nekon" brand has also developed into the renowned brand in profession.

In order to improve our service, our company has established the Marketing Management Center and established several branches at home and abroad. We have dispatched technicians for providing considerate presales, sales and after-sales technical support and service for clients. It is the firm belief of Nekon people to pursue excellence. Owing to strong technical strength and rich experience, we are devoted to developing "Nekon" brand into the world famous brand, advancing with the times and earning high praises around the world. We are expecting that you may select Nekon products and enjoy the outstanding performance of Nekon products.

If you are interested in our products, please feel free to contact us.
