• Mini woodworking cnc router 1212 for advertise sign making,DSP controller

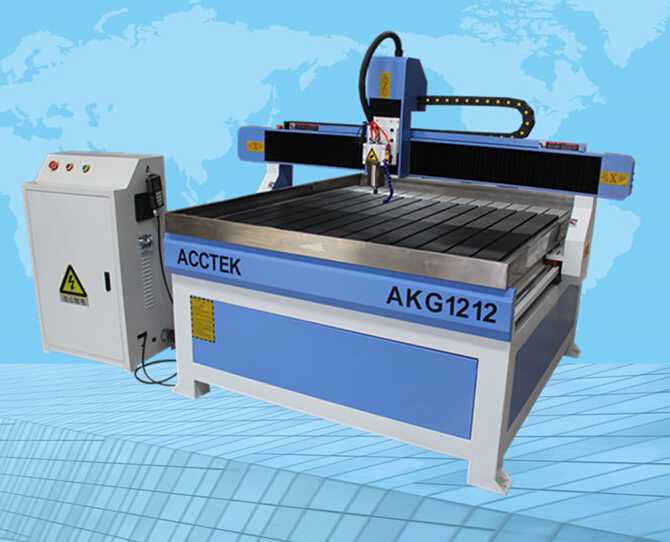

Mini woodworking cnc router 1212 for advertise sign making,DSP controller

Dust collector,Rotary device,Mist cooling system,Vacuum table

Product Details

Quick Details

Description

Technical data of the cnc router AKG1212:

Model

AKG1212

XYZ Working Size

1200*1200*150mm

Machine body

Whole cast Iron structure

Table surface

PVC T-slot table with Aluminum profile/Vacuum table for optional

XY structure

Taiwan TBI Ball screw drive

Z structure

Taiwan TBI Ball screw drive

Spindle

1.5 kw water cooling/2.2kw/3.0kw for optional

Spindle speed

0-24000 RPM

Drive motor

Servo motor/Stepper motor

Max. Rapid Travel Rate

16000 mm/min

Max. Working speed

8000 mm/min

Control system

Mach3 with USB port/weihong DSP

Software

Type3, Artcam, Ucancam

Inverter

Shanghai Fuling

Machine precision

0.01 mm

Repositioning precision

0.03 mm

Working voltage

AC 220/380V

Machine Size

2970*1820*1590mm

Net weight

420KG

Optional parts

Dust collector,Rotary device,Mist cooling system,Vacuum table

Color

Customized as you prefer







Mini woodworking cnc router 1212 for advertise sign making,DSP controller





Company Profile

Jinan AccTek Machinery Co., Ltd was located in high technology industry zone of Jinan,which specializes in manufacturing CNC and laser machines since 2005.

Our company is devoted to the research and development of carving CAD/CAM technology and CNC technology."AccTek" is from "accuracy technology",which is and will be our goal all the time! "AccTek" branded CNC routers and laser cutters have obtained remarkable achievements in the design of precise carving machine as well as artistic carving technology. We have realized industrialization of the computerized numerical control technology.

Our produces are wildely sold in many European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.
After several years of rapid development, our routers have already covered advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts fields. Our routers fproducts well meet the demands of customers in different countries.

We are still trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
