  • Mid-Position Scissor Lift HY-JSZW-3227

Mid-Position Scissor Lift HY-JSZW-3227

Model Number:HY-JSZW-3227 please contact us: yx@mec.com.cn

Product Details

Quick Details

Description

  1. The lifting platform extension, according to the different models of vehicle support the ramp and extension, flexible use ,cover small space.
  2. Pneumatic lock, safe and reliable.
  3. The initial height is lower(110mm),have sliding ramp and extension.
  4. Adopt axis drived,synchronization performance good, lifting capacity well.
  5. Hydraulic system adopted imported electromagnetic valve and seal componets, ensure the stability and working life of the machine.
  6. When the power supply is off, lift and vehicle can be down by manual.
  7. When repairing have safety lamp(24v),ensure the safety of the people
  8. Rising and falling have safety alarm device.

Technical specifications:

Lifting Capacity 3000kg
Lifting Height 1000mm
Min.Height 110mm
Lifting Time 30s
Power Supply 110v/220v/380v
Noise <65dB
Weight 665kg

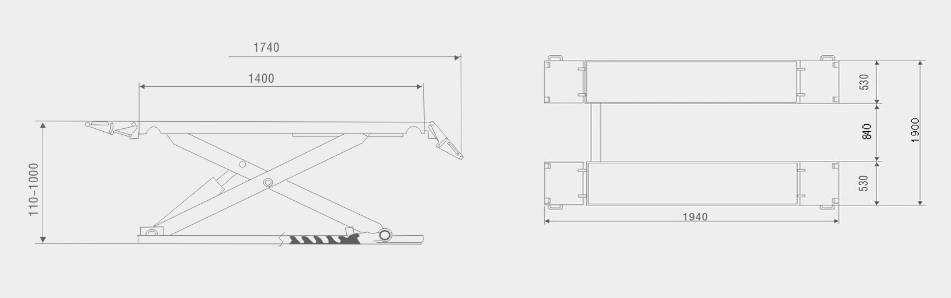

Outline Dimensions L1400*W530*H110mm
