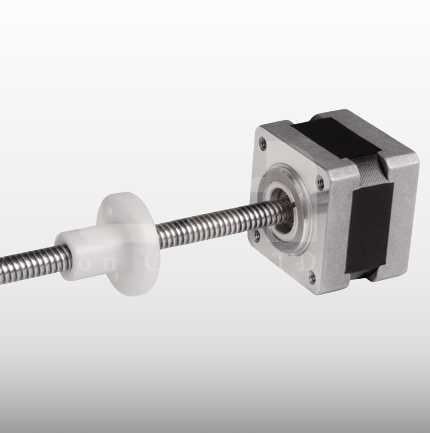

• Micro Electric NEMA 14 Linear Hybrid Stepper Motor Hl353

Micro Electric NEMA 14 Linear Hybrid Stepper Motor Hl353

Number of Stator: Two-Phase, Function: Driving, Certification: ISO9001, CCC

Product Details

Quick Details

Description



HL353(35mm)
- 1.8°/step
2/4 Phase

Screw Specification
 Screw Dia.(mm) ---Tr6.35
Travel Per Step(mm)---0.0079  0.0158  0.0315
Lead(mm)---1.58 3.17 6.35


Screw Dia.(mm) ---Tr8.00
Travel Per Step(mm)---0.0400
Lead(mm)---8
 Motor Electrical Specification


Series Model Step Angle ( o ) L
(mm)
Rated Current (A) Phase
Resistance
(Ω)
Phase
Inductance  (mH)
Holding Torque
(N.cm)
Detent Torque (N.cm) Lead
Wire
(NO.)
Motor
Weight
( g)
HL353-01205 1.8 28 0.46 20 15 12 0.8 4 120
HL353-01208 1.8 28 0.8 5.5 7.0 12 0.8 4 120
HL353-00904 1.8 28 0.4 30 11 9 0.8 6 120
HL353-01804 1.8 34 0.42 25 40 18 1.0 4 160
HL353-01808 1.8 34 0.8 6.5 12 18 1.0 4 160
HL353-01204 1.8 34 0.4 30 22 12 1.0 6 160





Micro Electric NEMA 14 Linear Hybrid Stepper Motor Hl353

Company Profile

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
