  • M5 Verticle milling machine

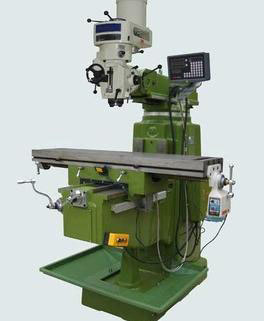

M5 Verticle milling machine

1.Head swivel angles are 90 left/right 2.Head swivel angles are 45 front/back 3 Small size and wide working range Please contact

Product Details

Quick Details


1.       The    milling machine is of excellent configuration with wide working range and small area requirement. Head swivel angles are90°left/right and 45front/back. Ram not only is movable in front and back direction but also can be rotated 360°horizontally to greatly extend the machine’s working range.
2.       The    milling machine body is made of SC250 Casting with good rigidity and reliability. Spindle is made of Chrome Molybdenum Steel, tempering and carburizing heat treated. Spindle is assembled with precision Ball Bearing that provides wide cutting rang and high precision.
3.       X, Y and Z axes slideways are laminated with wear resistant material, Turcite-B for easy operation, minimum wear out and long durability.
4.       Working Table and Slideways are treated with inductive surface hardening and precision ground for maximum wear resistance. Equipped with manual oil lubrication system for concentrative lubrication on Working Table and knee.
5.       R8, NT30, NT40 Spindle Tapers are available.

Company Profile

Jiangnan Jiahua Import & Export Co. Ltd, is a holding company of Jiangnan Industrial Group(JIG). It is mainly engaged in the sales of self-made products such as new energy equipment (CNG cylinder,LPG cylinder with brand name Jiangnan "Silver Arrow"), CNC machines with brand name Jiangnan"Miraro",milling machine and turret-type milling head with brand name Jiangnan "Silver Arrow"and etc .
