  • Label Sleeving Machine

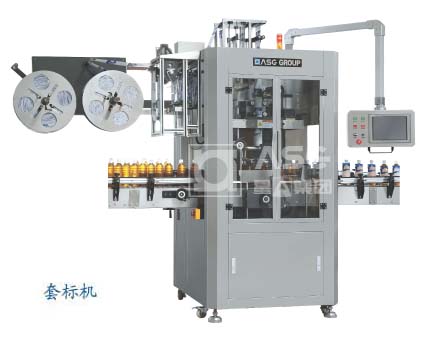

Label Sleeving Machine

To meet the requirements of such a wide range customers demanding velocity of their production lines, our company makes research and improvement with great care to manufacture this label sleeving machine, the highest velocity of which can be up to more than 700 Bottle per minute; It also employs internationally advanced technology of the same kind. It applies to such food&beverage industries as fruit juices, tea drink, dairy products, pure water, condiments, beer and sports drink and all kind of other bottle types.

Product Details

Quick Details


Packing machines includes label sleeving machine, OPP hot melt labeling machine, case packer and PE shrink wrapping machine developed by our company are applicable to all kinds of bottles of fruit juices, tea drinks, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industry. The company is human-based, lays emphasis on internal management and carries out the spirits of perfect production. Aiming at the demands of the customers, it manufactures equipment satisfying market demands and becomes an excellent cooperative partner of such cooperation such as Yili Industrial Group, Mengniu Dairy, Xiaoyangren Dairy, Uni-President, Harbin Pharmaceutical Group Holding Co., LTD, Danone Group etc.

Driving unit:
Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.

Cutter head unit:
The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. 1mm.Unit
±Synchronous locating device enables the tolerable error to  cutter head plane design in China which apply to the container of ∮30mm—∮130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products. The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.

Label feeding unit:
It adopt double material shelf which enable the change of label more convenient and fast. There is label checking photoelectricity and when there is no material, it will stop automatically and give alarm light and also display on the touch screen. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label.

Clean down unit:
Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.
Inhibiting device on the screw mandrel effectively control the fault operations and ensures the safety of the center pillar.

Bottle carrying system:
Adopted with mechanical transmission to drive the positioning belt on both sides.While changing the whole bottle carrying unit, the down and up, width are all controlled by one handwheel aiming to synchronously and swiftly adjust.

Machine head up and down unit:
It adopts motor to up and down which enable the operation more convenient.

New steam shrinking tunnel:
The new style steam shrink tunnel improve the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use the separation style which make the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient. The whole machine is made of stainless steel, so it is heat preservation and save energy sources. Besides, it accord with the international safety standard. The stainless steel plane at the bottom can condensate water and drainage them and working environment cannot be influenced. There are two eye window in front and at the back of the box body. The waterproof design of the whole machine is made of stainless steel which makes the operation and maintain convenient.

New hot air shrinking tunnel: It adopts high pressure blower machine. Special designed hot air circle tunnel saves more energy and make the shrinked bottle more beautiful. Compare with the traditional shrinking tunnel, this kind of tunnel can do better for curved bottle.


Company Profile

Jiangsu ASG  Packaging Machinery Group Co., Ltd. is located in Jinfeng Industrial Zone, Zhangjiagang city, owns a 30,000m2 international standard workshop. ASG professionally researches, develops and manufactures beverage-packaging machinery and dairy packaging machinery. We bought several sets numerical control machines from American and Japan. The fixed assets of ASG exceed RMB 100 million. Since its foundation, ASG has concentrated on a single area of beverage and milk product packaging machinery. Recently, we already finished some researches and were going on some project, including "automatic high speed aseptic filling machine of liquid food", which is the state torch program, "mono-block filling machine of juice with pulp", "liquid milk & beverage continuous high-speed packing robot" etc. We took part in national standard making, and then we became the leader in the industry. Moreover, we cooperated with foreign and domestic famous enterprises, such as Nescafe, Coca Cola, Pepsi, Bright Dairy, Robust, Arawana, Dongpeng, Yang Jiajia, Tianjin Nanji, Shanghai Yangzhong, Tianjin Huaqi Group etc, also our products are exported to all over the world. The company always hold the philosophy of "the quality wins the market, the brand forms the success". We, full of enthusiasm and sincerity, warmly welcome domestic and overseas customers.
