Quick Details
Description
- Brand Name: Hisena

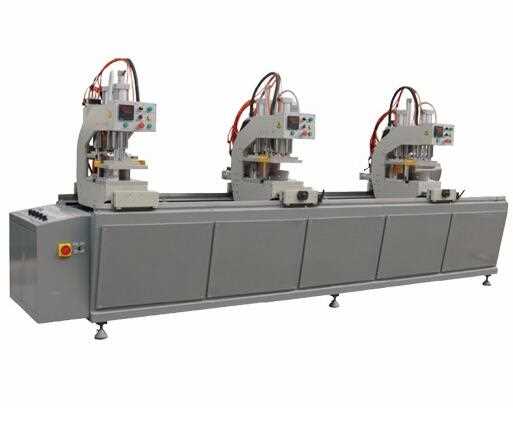

- Model Number: LSZW3
- Machine Type: PVC Window Processing machine
- Power supply: AC 220V 50Hz
- Total Power: 3.5kw
- Work Air Pressure: 0.5-0.8Mpa
- Air consumption: 200L/min
- Welding material length: 400-3500mm
- Welding material height: 20-120mm
- Welding material width: max 120mm
- Clean type: outside only
- Overall Dimension: 4600*1100*1200mm
Main Features:
1. Most popular machinery type with 2mm welding.
2. Various angles welding between 30 to 180 degree is available on last machine head.
3. Solid machinery base and structure ensure long life service with high dimension accuracy.
4. profile fixture ordered separately can meet various height profiles' processing requirement
5. Special profile fixture is easy to change, for high corner strength and later good cleaning
6. Each machine head can be working separately or combination.
7. Widely window type application as follows:
8. Optional model: HTW2--120, HTW4--120) for different machinery head. Owning different machinery welding capacity.
Main Technique Parameter:
|
Power supply
|
AC 220V 50Hz
|
|
Total Power
|
3.5kw
|
|
Air pressure
|
0.5-0.8Mpa
|
|
Air consumption
|
200L /min
|
|
Welding material length
|
400-3500mm
|
|
Welding material height
|
20-120mm
|
|
Welding material width
|
≤120mm
|
|
Welding mullion width
|
≤110mm
|
|
Welding Temperature
|
399 ℃
|
|
Clean type
|
outside
|
|
Size
|
4600×1100×1200 mm
|
|
Weight
|
1200Kg
|
Jinan Haijinna Door-Window Machine Co., Ltd. is specialized in designing, producting and saling of Alu-Plastic Door-Window Machines and Insulating Glass Machines for more than 10 years.
Producting quality products, doing excellent brand, that makes our company having been famous brand manufacturer in our industry.
"Rputation gains success,quality creats future" is our management. We keep on absorbing advance technology and management experience in our country and abroad, raising our quality level of products.
We have professional designing team, manufacturing experience and high efficient saling and service team. To give top quality equipment and service to users.
We hope to build long term cooperation with people and to creat beartiful future together.
