Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: JMD
- Model Number: LJZJSA-120
- After-sales Service Provided: Engineers available to service machinery overseas
- Power supply: 380V/3Phase/50Hz
- Input power: 1.7kW
- Air compressure: 0.5~0.8MPa
- Air consumption: 2L/min
- Rated oil pressure: 10MPa
- Oil tank volume: 17.5L
- Crimping cylinder stroke: 0~68mm
- Overall dimensions:1300mm*1300mm*1300mm
- Weight: 450Kg
- Warranty: 1 year
Features

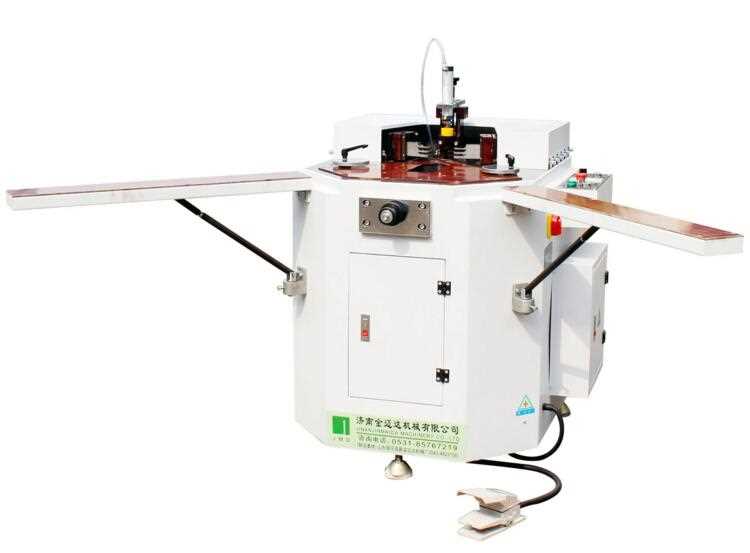

1. Used for jointing the corners of aluminum windows & doors at 90°
2. Crimping blade driven by hydraulic system with high stability
3. Safe & easy to operate and maintain
4. The inner positioning device is beneath the worktable when the machine is not working. This design makes it convenient toload and unload the window frames and makes this machine suitable for large-size windows and doors.
Technical Parameters
Power supply: 380V/3Phase/50Hz Input power: 1.7kW
Air pressure: 0.5~0.8Mpa Air consumption:2L/min
Rated oil pressure: 10Mpa Oil tank volume: 17.5L
Profile processing width: 120mm Cylinder stroke: 0~68mm

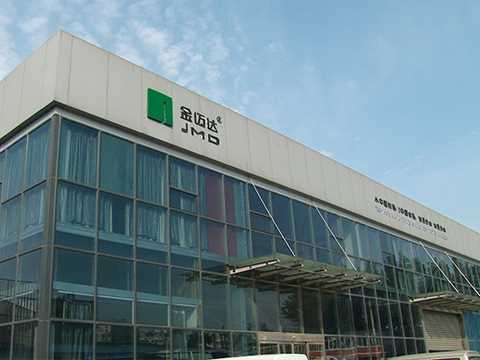

Jinan JMD Machinery Co., Ltd. is a high technology enterprise specialized in the production of aluminum door and window equipment and curtain wall equipment. Our company covers area of 25 acres, with 20 thousand square meters' processing plants, assembly plant, quality control center and warehouse plant. The main business of our company is machinery processing. We have over one hundred sets of lathes, milling machines, planers, grinding machines and other processing equipment. Our company has complete processing equipment with excellent performance. The configuration of equipment is from the planer type milling machines of processing large scale accessories, floor-type milling machines to digital control processing equipment of controllable processing precision in 0.01 mm. With the wide range of processes, high precision and reasonable matching, our company has fulfilled the perfect combination of processing and assembling. The accessory is primarily assembled and then processed with machine tools. In this way, the equipment assembled by us enjoys high precision and reliable stability.
