Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Ghorit
- Model Number: KYN61-40.5
- Model NO.:: KYN61-40.5 series
- Type:: Power
- Structure:: Open Frame
- Size 1:: 1200*2600*2400mm
- Size 2:: 1400*2600*2400mm
- Frequency:: 50Hz
- Rated Voltage:: 40.5kv
1. Product Description:

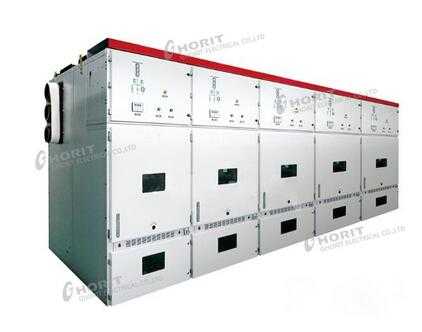

KYN61-40.5 series Metal-clad withdrawable AC metal-enclosed switchgear cabinet is a new type of product recently designed and developed by Xi'an High Voltage Electrical Research Institute. The switchgear frame is a metal-clad type structure design, inside equipped with new full-insulating vacuum circuit breaker or sulfur hexafluoride circuit breaker. The switchgear body uses packaged structure, which improves appearance quality and manufacturing accuracy, and shortens the production cycle. The normal operation of switchgear conduct on the conditions of high pressure isolated room with door closed. The switchgear cabinet conforms to regulation of IEC-60298,GB3906,with sound "five-prevents" function.
2. Application:
KYN61-40.5 type switchgear cabinet is suitable for use in system of 40.5KV, three-phase AC 50HZ, as an indoor distribution equipment to accept and distribute power, with function of circuit control, circuit protection and circuit detection. In addition to be suitable for general power system, it also can be used in frequent operation places. It works in normal environment conditionsregulated in GB 3906-20063-35 kV AC metal armored shift switch cabinet.
3. Working conditions:
3.1. Environmental temperature: - 15 C~ + 40C;
3.2. Altitude: ≤1000m
3.3. Relative humidity: Daily average ≤95%, the water vapor pressure on daily average≤ 2.2kpa;
Monthly average ≤90% , the water vapor pressure on monthly averages≤ 1.8kpa
3.4. Earthquake intensity: ≤ magnitude 8
3.5. Installation conditions: free of explosive and corrosive gas, no severe vibration and shock

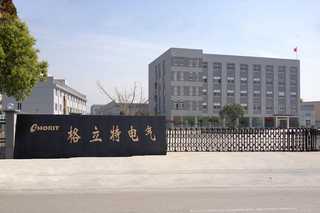

Ghorit Electric Equipment Co., Ltd. Zhejiang is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China. Our company enjoys convenient transportation.
Ghorit integrates R&D, Manufacture, sale and service. Ghorit covers 26000 Square meters, including a construction area of 12000 square meters.
Ghorit mainly produces and sells high-voltage electrical components and related equipment.
Ghorit passed through ISO9001 international quality system management certification. We always adhere to the tenet of "survival based on high-quality products". With strong technical force, advanced production technology, perfect detection means and superior product quality, we are expanding the markets. We have won a high reputation among clients.
