Quick Details
Description
- Type:Filling Machine
- Condition:New
- Application:Chemical, Commodity, Food, Medical
- Packaging Type:Case
- Packaging Material:Wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:380V 50Hz
- Power:2.2KW
- Place of Origin:Shanghai, China (Mainland)
- Brand Name:other
- Model Number:JZGN-S-F
- Dimension(L*W*H):2000*1500*2500 mm
- Weight:1350 kg
- Certification:ISO
- After-sales Service Provided:Engineers available to service machinery overseas
- Name:filling machine
- Product name:Liquid Pouch Filling Machine
- Function:liquid filling
- Volume:500-5000ml
- Material:Stainless Steel 304
- Filling material:liquid,pasty fluid,Condiment
- Bottle type:Round Bottle,Flat bottle,squqre bottle
- Filling speed:500-4000 P/h(1000ml)
- Number of Filling Nozzle:4-12
- Pressure Range:0.6-0.8 Mpa

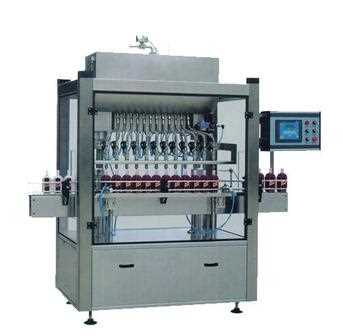

This machine is a quantitative automatic filling machine. It can be used in filling operation of liquid, paste, viscous body and sauce. It is suitable for all kinds of round bottles, flat bottles and square bottles.
This machine adopts linear motion method, on the design logic controller based on PLC and various detection sensor and the cylinder charge, achieve the goal of automatic control, a bottle filling, no bottle no filling, filling without bubble, without dripping, and equipped with unique rotary valve in order to more effective with particles or filling viscous materials, filling volume is controlled by servo motor, quantitative precision, more has the most advanced touch screen operation, a touch namely and full compliance with GMP standard.The operation is simple, can change different container filling operation in a short time, achieve the cost effectiveness of one machine count.It is widely used in beverage, food, medicine, daily chemical industry and chemical industry.
