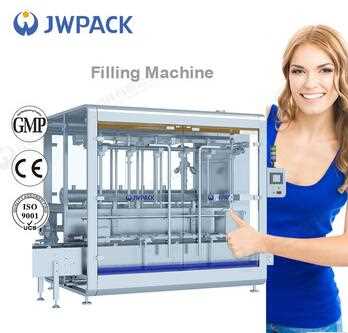

JWPACK New Product CZ-6C oil filling machine price weighing filling machine automatic high viscosity drum filling machine

• Type: Filling Machine
• Condition: New
• Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
• Packaging Type: Barrel, Bottles, Cans
• Packaging Material: Glass, Metal, Plastic
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 380V/50hz
• Power: 1.5KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: JWPACK
• Model Number: CZ-6C
• Dimension(L*W*H):3000mmx1565mmx2380mm
• Weight: 1600kg
• Certification: CE GMP ISO
• After-sales Service Provided: Engineers available to service machinery overseas
• Filling Capacity: ≤Bottles/hour (5L water as example)
• Filling Range: 5-30L
• Filling Precision: ±0.2%
• Applicable Bottle Range MIN:140x200x320mm
• Applicable Bottle Range MAX:260x290x500mm
• Air Pressure: 0.6-0.8 MPA
• PLC/Touch screen/Inverter: Schneider
• Cylinder/Solenoid valve: FTEC
• Material: 316L+304 Stainless steel
• Keywords: Automatic high viscosity drum filling machine

CZ-6C Scale Fixed-quantity Filling Machine is making up of the scale (with roller), chain-driven drum in and out structure, fast and slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials (with or without foam). It has the dive function can eliminates the splash and foam.

Functional features

Constant feeding system, dive down optoelectronics, mechanical limit dual protection are the advanced features. It is very safe as the functional area is completely isolated; no bins designed makes cleaning and maintenance easier and also ensures no residual. Quick structural adjustment improves productivity.

1.Adopts Americal METTLER TOLEDO weighing sensor and control meter, ensures that the filling precision of of measurement. Weighing sensor adopt unique ball-to-go drum conveying method, ensure smooth drum-out conveying after filling.

2.Adopt fast and slow speed valve that ensuring filling accuracy and has no effect to speed. It has the dive function , driven by motor, can eliminates the splash and foam. This filling machine can do the auto filling of different materials (with or without foam).

3.Under the filling nozzle is the movable dip collecting cup. After filling, the cup collect the residuel dip to prevent bottle mouth polluting.

4.Weighing control cabinet is of standard RS-483 interface, The system is of number control, adjustment and seeting all can be implemented in touch screen. Gross weight or net weight filling all could be set so the actual filling amount instantly show in touch screen. It is very convinient and intuitive.

 5.Empty drum detection, no drum no filling; Anti-collision bottle design, it will auto-reset when bottle orientation or position is not in right place.

6.Individual electric cabinet is of whole seal design, reasonable layout, and convenient overhaul. Main part(PLC, HMI, frequency convertor, and power switch, etc) are all France Schneider’s and other famous brand components, which ensures stable running of the equippment.

7.Material touch part is of SUS304 stainless steel. Filling scale and the sealing of the material touch part are TEFLON.
