Quick Details
Description
Please contact us:chensong@mec.com.cn

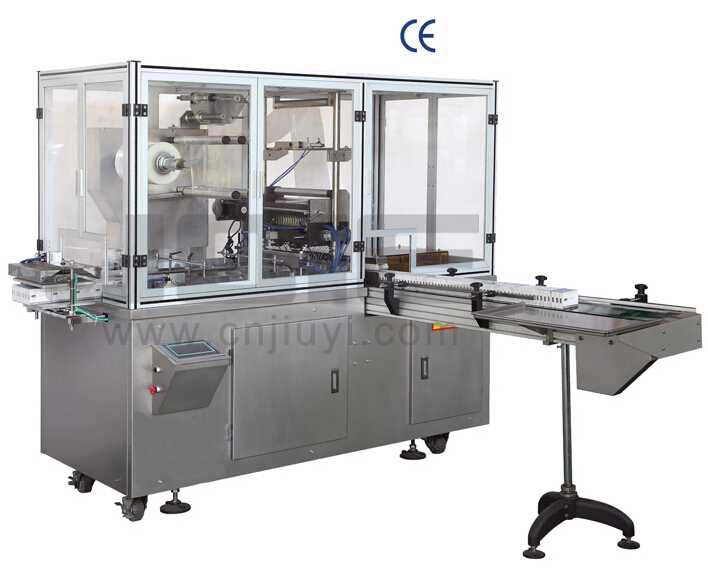

The machine is driven by a series of cams, connecting rods and other accessories, which are applicable for wrapping big-sized cases such as multi-boxes, which driving principle is intermittent. Model JE-400C overwrappping machine is applicable for wrapping big sized box such as food box with biscuit/chocolate etc. using BOPP film with tear tape.
Features:
Standard attachment:
1. When the height is different,it''''s easy to change the folding blade and propulsor on folding street.
2. PLC control with touch display.
3. Automatic counter, Speed adjuster and temperature adjuster
4. Temperature, and film length adjustment via the touch dislay.
5. Film cutter device,tear tape device.
Technical parameter
| Model |
JE-400C |
| Package size |
(100-300)x(50-200)x(15-80)MM3 |
| Capacity |
12-15packs/min |
| Voltage |
Single phase 220V,50~60hz |
| Motor power |
0.75kw |
| Electric heating power |
4kw |
| Overall dimension |
2400mm×1200mm×1900mm(L×W×H) |
| Conveyor |
1800 X 900 X100 MM |
| N.weight |
1200kg |
