Quick Details
Description
- Condition:New
- CNC or Not:Normal
- Power Source:Mechanical
- Place of Origin:Anhui, China (Mainland)
- Brand Name:rbqlty
- Model Number:J23
- Voltage:380V/220V Optional
- Power(W):750
- Weight:6.3T
- Dimension(L*W*H):570*580*1503mm
- Certification:CE ISO SGS
- Warranty:2 Years
- After-sales Service Provided:Engineers available to service machinery overseas
- Nominal force:63KN
- Stroke of sliding block:35
- Closed height:150mm
- Closed height adjustment:30mm

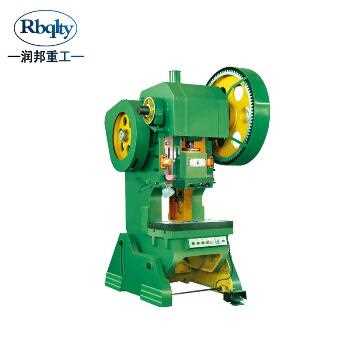

- Product name:J23 series machine tool equipment door press machine
- Packaging Details:Plastic film or according to customer's requirement
- Machine Function:Punching Ang Press
- Keyword:press machine
- Usage:Metal Press
- Material:Hard Steel
Main Features:
1. J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
|
Technical Parameters
|
Unit
|
J23-6.3
|
J23-10
|
J23-16
|
J23-25
|
J23-40
|
J23-63
|
J23-80
|
|
Nominal force
|
kN
|
63
|
100
|
160
|
250
|
400
|
630
|
800
|
|
Stroke of nominal force
|
mm
|
2
|
2
|
2
|
3
|
5
|
5
|
6
|
|
Stroke of sliding block
|
mm
|
35
|
50
|
60
|
70
|
100
|
100
|
120
|
|
Number of strokes
|
times/min
|
145
|
130
|
110
|
60
|
55
|
50
|
45
|
|
Closed height
|
mm
|
150
|
180
|
190
|
210
|
325
|
350
|
370
|
|
Closed height adjustment
|
mm
|
30
|
35
|
40
|
50
|
65
|
80
|
90
|
|
Distance from slider block center to the frame
|
mm
|
110
|
130
|
150
|
180
|
250
|
260
|
275
|
|
Length between columns
|
mm
|
120
|
140
|
160
|
230
|
270
|
310
|
410
|
|
Hole size for die handle
|
Diameter
|
mm
|
30
|
35
|
35
|
40
|
50
|
50
|
60
|
|
Depth
|
mm
|
50
|
50
|
60
|
60
|
70
|
70
|
70
|
|
Size of worktable
|
Left-right
|
mm
|
310
|
360
|
440
|
500
|
680
|
720
|
750
|
|
Front-back
|
mm
|
200
|
240
|
270
|
320
|
460
|
480
|
530
|
|
Blanking hole diameter
|
mm
|
60
|
80
|
100
|
130
|
150
|
160
|
180
|
|
Table plate thickness
|
mm
|
30
|
35
|
40
|
50
|
65
|
80
|
100
|
|
The max tilt angle
|
°
|
45
|
35
|
35
|
30
|
30
|
20
|
20
|
|
Left-right
|
mm
|
570
|
680
|
730
|
920
|
1060
|
1130
|
1350
|
|
Front-back
|
mm
|
580
|
630
|
950
|
1180
|
1435
|
1480
|
1715
|
|
Height
|
mm
|
1503
|
1658
|
1750
|
2040
|
2350
|
2450
|
2670
|
|
Power
|
kw
|
0.75
|
1.1
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
Anhui Runbang Heavy Machinery Industry Co.,Ltd is the expert in kinds of sheet metal processing machines,like bending machine,shearing machine,iron worker,hydraulic press,punching machine,duct manufacturing auto line,cutting machine and so on, which are widely used in decoration,metallurgy,shipbuilding,automobile,machinery,aviation and other professional production fields. Meanwhile the company is also the manufacturer of kinds of shearing machine tools and bending machine molds. The products are exported to EU,South America,Africa,Southeast Asia,Middle East,etc.
With an expert team in R&D for more than 20 years,occupied the work shop of over 30,000 square meters,runbang is able to support you with best quality machines.
To win customers by good faith,to get trust by good quality! We are highly honored to cooperate &develop with international partners by the scientific management ,excellent quality, novel design, reasonable price and perfect service. Now the company has got the ISO 9001, ISO14001 and CE certificate.
Advanced technology and modernized management is our goal, which allows us in the forefront of the industry. Sincerely looking forward to develop with you together!
