Quick Details
Description
The ground hidden lift is suitable for mini-car’s maintenance. The features as follows:
- Utilizing ground hidden flat structure, and cover small space.
- Pneumatic self-locking, safe and reliable.
- Hydraulic system adopts an integrated valve plate system with imported seal; ensure the stability and working lift of the machine.
- With manual pre-interface, when power supply is off, lift can be down by manual.
- It is composed of four parts, hydraulic system, pneumatic system and electric system

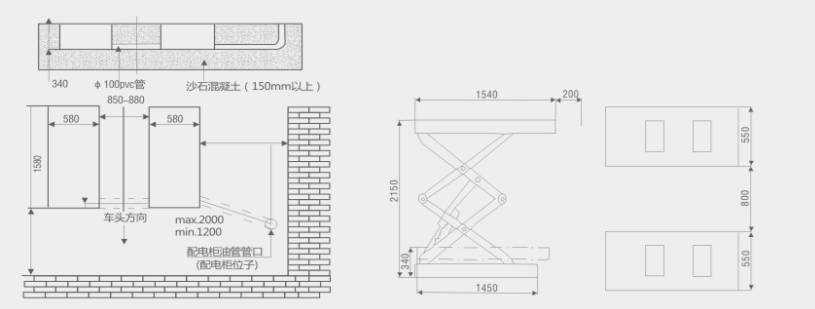

Technical specifications:
| Lifting Capacity |
3000kg |
| Lifting Height |
21500mm |
| Min.Height |
340mm |
| Lifting Time |
1.2m/min |
| Platform Length |
1540mm |
| Platform Width |
550mm
|
| Motor Power |
380v-2.2kw or 220v-2.2kw |
| Rated Oil Pressure |
20Mpa |
| Air Pressure |
0.6-0.8Mpa |
| Outline Dimensions |
L1540XW550XH340mm |
| Weight |
800KG |
