Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Beverage, Chemical, Food, Medical
- Packaging Type: Bags, Film, Foil
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 2.6KW
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: HUAZE
- Model Number: HZ-RS450/800
- Dimension(L*W*H): 6200*850*1450
- Weight: 1100KG
- Certification: CE/ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Monitor: MCGS 7" touch-screen display
- Machine material: 304# stainless steel
- Packing material:OPP/BOPP/PE/POF/Aluminum foil laminated film
- PLC: Panasonic
- Color mark sensor: Chinese brand,SICK/Banner is optional
- Relay: Schneider
- Packaging capacity: 10-100pcs/min adjustable depends on products size
- Operation panel language display:English,Spanish,Russion and Arabic available
- Machine dimension: Customizable for your requirement

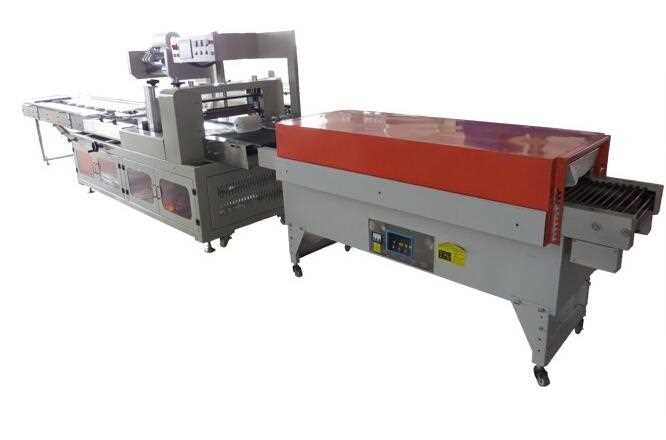

- Product name: High speed shrink wrapping machine
Feature:
1. Compare to traditional L bar shrink wrapping machine ,our shrink machine has high capacity up to 50-80 pcs/min
2. PLC controller and 7' color touch screen set all the parameter easily
3. Film pulling by servo motor driver
4. Special customized heat shrink tunnel is high effective
5. If fault, machine stop automatically and the fault can be display on the screen
Parameter:
|
Model
|
HZ-RS450
|
HZ-RS800
|
|
Packing film material
|
POF,PE
|
POF,PE
|
|
Paciking size
|
L:55-300mm ;W:20-180mm ;H:5-60mm
|
L:500mm ;W:340mm If bigger size,customized
|
|
Packing capacity
|
10-100pcs/min
|
10-80pcs/min
|
|
Dimension
|
6200*850*1450mm
|
6200*850*1450mm
|
|
Power supply
|
AC 220V 50/60HZ 2.6KW(wrapping device)
AC 380V 50/60HZ 15KW(shrink tunnel)
|
AC 220V 50/60HZ 2.8W(wrapping device)
AC 380V 50/60HZ 18W(shrink tunnel)
|
|
Weight
|
650kg+200kg
|
800kg+250kg
|
Huaze Machinery Co., Ltd. is a private enterprise specialized in research,development, manufacturing, sale and service of automatic packaging equipment. Our company has a team who are professional, capable, young and full of cooperation spirit.
CE Certification and ISO 9001:2008 Certified Processes
CE Certification and ISO Certification ensures that the best of international manufacturing processes are used for every Huaze product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every Huaze customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships,and then stand behind our workmanship with industry leading warranties.
Experienced and Fully Customizable Solutions
Our company focuses on packaging machinery, pharmaceutical machinery, food machinery,cosmetics, machinery,etc. (The main products: Series Multifunction Automatic High-speed pillow packing machine, cartoning machine series, the series of high-speed shrink packaging machine, Automatic stretch film vacuum packaging machine , tissue (wipes) automatic packaging production line, plasticine (clay color) packaging lines, packaging production line) the development, production, sales and service.
Selling products in more than 30 provinces, municipalities, autonomous regions and exported to Eastern Europe, the Americas, the Middle East, Southeast Asia more than 30 countries and regions, by users of all ages, and establish a good reputation.
Outstanding Service
Looking ahead, the company will continue to uphold "honesty, innovation is the soul" concept of service, resolutely carry out "Your satisfaction is HuaZe pursuit of principle of service", attention to customer feedback, timely grasp of market dynamics, new provide customers with more quality products and services, we look forward to your sincere cooperation and common development, create brilliant!
