Quick Details
Description
Application.

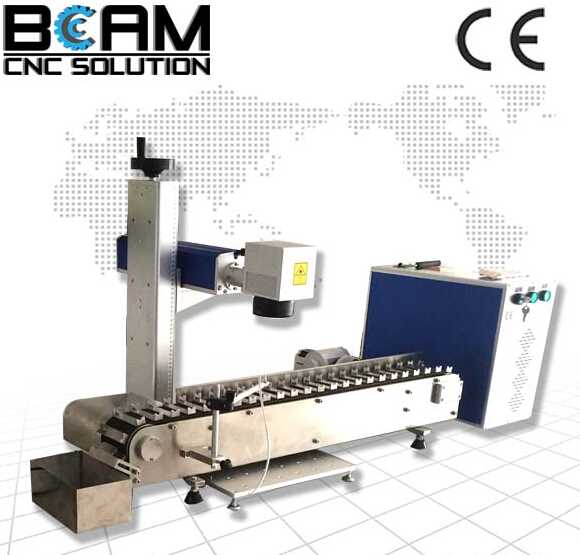

Flying laser marking machine is mainly used for on the surface of all kinds of product surface or the outer packaging of online to spurt the code marking, in the coding that moment calibration process in, products in the production line does not stop the flow, thus greatly improves the production efficiency, the laser machine is suitable for the requirements of industrial production, basic coverage of the inkjet machine all application scope. Apply to all kinds of non - metal products marking.
|
NO
|
Model
|
BCJ-10W
|
|
1
|
Laser power
|
Fiber 10W (20W/30W for option )
|
|
2
|
Working area
|
100*100mm (200*200mm / 300*300mm for opton )
|
|
3
|
Laser Wavelength
|
1064nm
|
|
4
|
Response time
|
0.5ms
|
|
5
|
Feeding speed
|
depend on products and marking effective.
|
|
6
|
Max marking depth
|
≤0.4mm
|
|
7
|
Marking speed
|
≤8000mm/s
|
|
8
|
Marking lines
|
1-10 lines(in the marking area)
|
|
9
|
Minimum line width
|
0.02mm
|
|
10
|
Minimum character
|
0.25mm
|
|
11
|
Repeatability accuracy
|
±0.002mm
|
|
12
|
Optical quality
|
M2 <1.5
|
|
13
|
Marking content
|
Text,pattern,date,bar code,etc
|
|
14
|
Operation system
|
Microsoft Windows XP or Windows 2000
|
|
15
|
Control software
|
EZCAD control software
|
|
16
|
Graphic format supported
|
bmp, jpg, gif, tga, Ai, bmp, dst, dxf, plt,png,tif,ai,dxf,dst,plt,etc.
|
|
17
|
Unit power
|
≤1.2KW
|
|
18
|
Operation temperature
|
5°C-40°C
|
|
19
|
Relative moisture
|
≤ 90%,no fog
|
|
20
|
Supply Voltage
|
220V/50Hz/10A
|
Jinan BCAMCNC Machinery Co., Ltd., established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK ,Korea and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD . In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC Package solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
