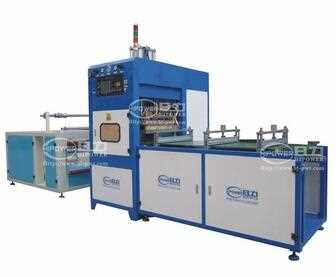

High frequency soft crease welding machine for welding PET/APET/PETG/GAG soft crease
PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Quick Details
Description
- Processing Type: Other
- Condition: New
- Product Type: PVC box
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HIPOWER
- Model Number: HR-8000P-20t
- Voltage: 220/380/440v
- Power(W): 8kw
- Dimension(L*W*H): L4.5*W1.2*H1.80 meters
- Weight: 1500kgs
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Application: PVC box soft crease forming machine
Mainly application:
It is especially designed for Clear Packaging Boxes, soft crease box forming,
PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
For Producing Products:
1. PVC Box 2. PET Box 3. PET-G Box
4. A-PET Box 5. GAG box 6. Other 30%PVC based Plastic packing box
Machine General Features:
1. Length, width and radian of welding area can be adjusted by change welding die.
2. Automated Three-in-one machine :
Auto PVC film flattening----(Optional: auto offset printing)---auto soft crease forming & waste scrap cutting
4. PLC & HMI Touch screen operated, making the operating process simple and time-saving
5. Servo-motor automated, enables exact off-set printing effect, box & scrap cutting performance
6. Separated Continuous simple flattening system for PVC film
7. High frequency welding press pneumatic and hydraulic operated (two phase pressing: The first phase for soft crease forming, The second phase for waste scrap cutting)
8. High sensitive 5557 anti-flash system to protect the welding Mould
9. Mould heating function available, enables beautiful soft crease forming.
Technical Specification:
|
Model
|
HR-8000P-30T
|
HR-15KWP-30T
|
|
Output Power of Generator
|
8KW
|
15KW
|
|
Anti-Spark System
|
5557 High sensitive anti-spark system
|
|
Voltage
|
3P AC 380V/220V/440V 50Hz-60HZ or customize
|
|
Frequency
|
27.12MHz +/- 0,6 %
|
|
Input power
|
15KVA
|
25KVA
|
|
Rectifier
|
SILICON DIODE
|
|
Oscillation tube
|
7T69RB
|
8T85RB
|
|
Max pressure
|
1000kg
|
1500kg
|
|
Operation mode
|
Pneumatic Operated
|
|
Max gap of electrodes
|
200mm
|
|
Size of active horn
|
150mm
|
|
Upper Electrode (W*H*L)
|
500*700mm
|
700*800mm
|
|
Size of Work Table (L*W)
|
500*700mm
|
700*800mm
|
|
Mould Heating Temperature
|
30-200°C Adjustable
|
|
Welding time
|
0.01~9.99s adjustable
|
|
Net weight
|
1500kgs
|
1500kgs
|
|
CERTIFICATE:
|
CE
|
Who We Are
Shenzhen Hipower Ltd is a leading manufacturer specialized in High Frequency Welding Machines, PVC &PET folding box and cylinderical box making machines,as well as Ultrasonic Plastic Welding Machines.
Why Us
Since 2000,High quality, competitive price, professional tech support and customer-oriented service makes Hipower a leading enterprise full of power and creativity. CE certification for all our machinery has been verified by SGS and B.V.Both automatic equipments and semi-auto equipments are available from Hipower.
We have professional engineer team for design first class products, experienced technicians for installing and testing products, and wonderful after-sales service personnel for helping customers how to use products.
Hipower also develops customized solutions to meet customers' requests for any application.
What We Do
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic welding technology, automation of production processes and other innovative industrial solutions.
Seeing is believing, we are looking forward to treating you as guest and show you machine demonstration at our workshop. We are ready to be your partners for the win-win cooperation and mutual benefits.
Let's move, please feel free to contact us.
