Quick Details
Description

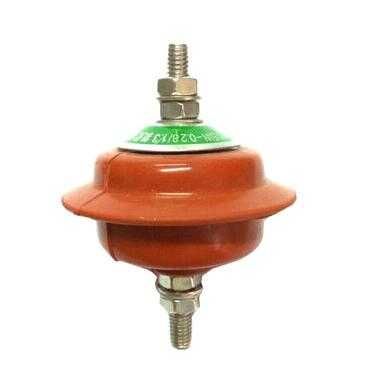

- Model NO.: HY1.5W-0.28/1.3 and HY1.5W-0.5/2.6
- Structure: Zinc Oxide Arrester
- Size: Small
- Material: ZnO
- Brand: L&R or as Customized
- Lead Time: 20 Days
- Transport Package: Export Standard Package or as Client Requirement
- Origin: Wenzhou, Zhejiang
- Type: Zinc Oxide Arrester
- Application: AC/DC System
- Operation Voltage: Low Voltage
- Certification: ISO9001
- ODM and OEM: Accept
- Trademark: L&R or according to customer′s requirement
- Specification: ISO9001: 2008
Basic infomation
Origin:Yueqing, Wenzhou, Zhejiang, China
Brand name:As customers' requirements
Markets:Global
Packing:Standard package or as clients' requirements
Service conditions
1.Average ambient temperature between +40ºC and -40ºC
2.Altitudes of not exceeding 2000m
3.Power frequency of 48Hz-62Hz
4.Maximum wind speed not exceeding 35m/s
|
Model No.
|
System Rated Voltage
|
Arrester Rated Voltage
|
Continuous Operating Voltage
|
DC reference voltage (U1mA)
|
Steep Wave Impulse Current Residual Voltage
|
Residual pressure under lightning impulse current
|
Residual pressure under operating impulse current
|
Square wave flow capacity
|
High current impulse withstand
|
|
kV(r.m.s)
|
kV
|
kV
|
A
|
KA
|
|
HY1.5W-0.28/1.3
|
0.22
|
0.28
|
0.24
|
0.6
|
|
1.3
|
|
75
|
25
|
|
HY1.5W-0.5/2.6
|
0.38
|
0.5
|
0.42
|
1.2
|
|
2.6
|
|
75
|
25
|
