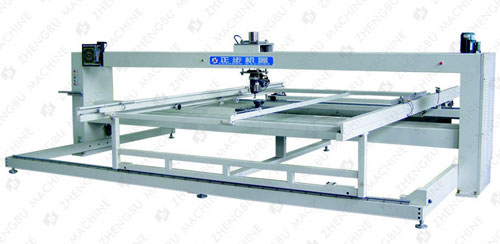

• HFJ-26HB-2 Computerized Quilting Machine

HFJ-26HB-2 Computerized Quilting Machine

HFJ-26HB-2 Computerized Quilting Machine is the monopoly product currently and chey are the necessary machines for producing soft mattress and thick materials.

Product Details

Quick Details Parameter

Quilt Size: : 2.6m×2.8m
Needle Drop Size: : 2.3m×2.6m
Machine Needle: : DP×5 11~23#
Sewing-thick: : 2600g/m2
Sewing Speed : : 500~1600SPM
Stitch Length: : 2~7mm
Dimensions(L×W×H): : 4.7m×5.7m×1.75m
Power: : AC 220V, 50Hz, 1.5Kw
Weight: : 2400Kg


HFJ-26HB-2 computerized quilting machines, are the monopoly product currently and chey are the necessary machines for producing soft mattress and thick materials. They can quilt especial thick materials and the thinner needle can be used in sewing gauzy materials.

O Use industrial control system to keep the machine run reliably, main shaft is driven by frequency conversion inverter, circumrotation , movement of X axis and Y axis by step motor driver.
O Main parts are import from foreign countries, special clips are concomitant.
O Special design device about sewing head and foot-presser, with strong ability for quilting thick materials.
O Sewing head can circumrotate 360° and step up automatically to put thick materials easily .
O Needle bar locked automatically to effectively avoid needle breakage.
O Set latest industrial control mainboard, enable to use USB-disk start while other disks in computer can not work, with function of running and furbishing controlling system.
O Capable of copying pattern and other files from USB-disk, and enable to use USB-disk plug and play.
O It’s convenient to copy or delete pattern files by pattern management function.
O With function of pattern viewing and rotating or mirroring pattern, capable of reading patterns of variety forms.
O Capable of counting output, and reboot to zero.
O Both forward and backward modes for retreat quilting, overlap stitch distance can be treated specially, and the stitch length can be changed.
O Trace seeking function makes needle quickly located in its position.
O Display quilting status at any time and prompt operation.
O Two quilting methods: forward and backward, and offer press buttons like forward, backward and needle thread etc.
O Convenient in defining and revising frame range and pattern size with setting and modifying functions.
O Offset function makes it available to join separated patterns accurately.
O Accompanied by change of defining pattern range and space, pattern size scales automatically.
O Single head, single needle, double-line locked style, big rotating shuttle.
O Power waste less than 1Kw.
O Self-detect breaking thread function, needle stays at upper position at pause time and machine stop working while thread breakage automatically.
O Testing system function, can detect the machine working status quickly, it used for repairing machine.
O Main shaft self-detect function effectively avoid the accident of breaking quilt, with protection function against exceeding in limit range.
O Return to original point automatically or manually, it will reduce stops.
HFJ-26HB-2 Computerized Quilting Machine

Company Profile

Suzhou Zhengbu machinery Co., Ltd. is a high-tech enterprise which integrates in research, develop, manufacture and sales of products including mechanics and electronics. It produces computerized quilting machines professionally. The factory located in Hedong Industrial Park of Wuzhong Economy District and at G15w highway Wuzhong exit. It has convenient facility.
Suzhou Zhengbu machinery Co., Ltd. was established in 1999. It always persists in scientific and technical innovation. And it inherits integrity, honesty, harmony, and progress spirit of enterprise and considers it as the root of development. Company attaches importance to education for all-around development of all the staff, continuously introduces into and brings up professional person who Zhengbu needs. At the same time, it pays attention to intellectual property rights protection, and put patent strategy into practice in order to enhance science and technology of products.

Zhengbu emphasizes people-oriented, considers quality and sevice of products as life, and develops by researching latest products. Nowadays, it comes into being a technological, innovative and scale of enterprise which produces computerized quilting machines professionally. Zhengbu had obtained ISO9001 Quality Management System Certification. And Computerized Quilting Machine Series produced by Zhengbu have already got the CE Certification.

Now both technology and sales of Zhengbu are on top in domestic market. Zhengbu brand had formed a famous brand; its good credit is as well-known as all of our customers. Our products are not only very popular in all over the country but also exported 30 countries and districts like Europe, America and South East Asia.

In order to provide better service to user, Zhengbu sets up offices in other areas and further improves service system in these areas. Company also constructs dealer net in India, Pakistan,Russia,Korea, and so on. Zhengbu own its efficient working team who specially supply after-sales services that let you light-hearted.
