Quick Details
Description
- Model NO.: GTWY
- Lift Mechanism: Telescoping Lift
- Moves: Moving
- Running Mode: Moving
- Certification: ISO 9001
- Materials: Aluminum, Alloy, Steel, Hot Dipping Zinc, etc
- Surface Treatment: Alumuinum
- Usage: Aerial Maintenance Work
- Certificate: ISO9001
- Trademark: Ruibiao
- Specification: aluminum lift
- HS Code: 84289090
- Application: Workshop Crane, Warehouse Crane
- Carrying Capacity: Light Level
- Driven Type: AC & DC
- Feature: Explosion-Proof
- Type: 200kg Lightweight Mobile Work Platform Aluminum La
- Maximum Lifting Height: 6-12meters
- Electric Source: AC or DC
- Platform: Anti-Skid Checkered Plate
- Places: Airports, Hotel, Warehouse
- Transport Package: Standard Export Packing
- Origin: China

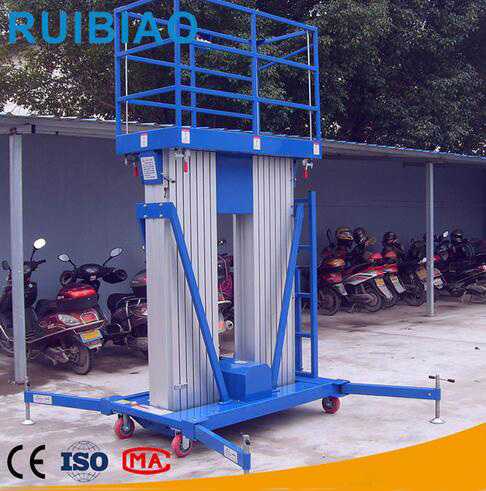

Lightweight mobile work platform aluminum ladder-Specification
|
Name
|
Aluminum working platform (Double mast)
|
|
Model
|
GTWY6-200S
|
GTWY8-200S
|
GTWY9-200S
|
GTWY10-200S
|
GTWY12-200S
|
|
Platform height(M)
|
6
|
8
|
9
|
10
|
12
|
|
Working height(M)
|
7.7
|
9.7
|
10.7
|
11.7
|
13.7
|
|
Load capacity(Kg)
|
200
|
200
|
200
|
200
|
200
|
|
Platform size(M)
|
1.18×0.60
|
1.18×0.60
|
1.38×0.60
|
1.38×0.60
|
1.48×0.60
|
|
Power voltage(V/HZ)
|
AC220
|
AC220
|
AC220
|
AC220
|
AC220
|
|
Rated power(KW)
|
1.1
|
1.1
|
1.1
|
1.1
|
1.1
|
|
Weight(Kg)
|
320
|
385
|
450
|
490
|
560
|
|
Overall dimensions(M)
|
1.35x0.85x1.65
|
1.35x0.85x2.00
|
1.55x0.95x2.00
|
1.55x0.95x2.00
|
1.65x1.00x2.00
|
Warranty
We provide 1 year after the date of Bill of Lading to the aluminum lift.
During the warranty period we guarantee to supply free replacement parts to any defective of our product
which proved to be defective in material or workmanship when under proper operation during warranty period;
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
