Quick Details
Description
- Condition:New, New
- Type:Tube Shoulder Injection, Tube injection machine
- Style:Vertical
- Brand Name:FOMTEC
- Model Number:FT-400DS
- Place of Origin:Guangdong, China (Mainland)
- Plastic Type:Thermoplastic
- Automatic:No
- Injection Weight:89g
- Injection Rate:55cm3 / sec
- Clamping Force:40ton
- Opening Stroke:350/450mm
- Power(W):91KW
- Certification:ISO
- After-sales Service Provided:Engineers available to service machinery overseas
- Dimension:1800*1500*2500mm
- Weight:2 Ton
- Total Wattage:9.1KW
- Application:Apparel, Beverage, Chemical, Commodity, Food, Machinery
- Order:welcome to order your specific machine accordingly

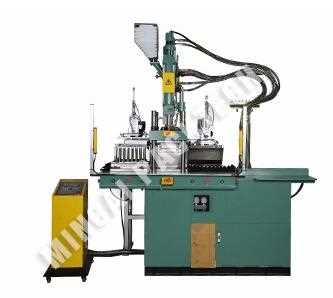

This machine is the right choice for flexible production of different tubes. Its main advantages are the high precision production process, the rapid mould change, low investment costs and high overall efficiency.
Technical data:
|
Item
|
Data
|
|
Injection Unit
|
Screw Diameter
|
Φ32mm
|
|
Max Injection Pressure
|
1531kg/cm3
|
|
Shot Volume
|
97cm3
|
|
Shot Weight
|
89g
|
|
Injection Rate
|
55cm3/sec
|
|
Clamping Unit
|
Clamping Force
|
40ton
|
|
Top Plate Size
|
550×395mm
|
|
Sliding Table Size
|
390×820mm
|
|
Sliding Table Stroke
|
420mm
|
|
Mould Size
|
410×255mm
|
|
Min.Mould Thickness
|
150/250mm
|
|
Mould Open Stroke
|
200mm
|
|
Max.Open Distance
|
350/450mm
|
|
Ejector Force
|
1.5ton
|
|
Ejector Stroke
|
55mm
|
|
Others
|
Hydraulic System Pressure
|
140kg/cm2
|
|
Oil Tank Volume
|
210L
|
|
Electric Power
|
5.5kw
|
|
Barrel Heating Power
|
3.6kw
|
|
Total Wattage
|
91.kw
|
|
Dimension
|
1.8×1.5×2.5m
|
|
Weight
|
2 ton
|
Features:
1. Up to 60 tube per minute
2. Rapid set-up time for exchange of size moulds
3. Inexpensive size parts
4. Simple operation and maintenance
5. Attractive cost/Benefit Ratio
6. Prompt customer service
