Electrical Fast Transient / Burst Generator

 EFT61004AG is designed for EFT immunity test requirement. The test is intended to demonstrate the immunity of electrical and electronic equipment when subjected to types of transient disturbances such as those originating from switching transients (interruption of inductive loads, relay contact bounce, etc.).

Product Details

Quick Details


 Fully compliant with the new standards of IEC61000-4-4

● LCD interface display .Chinese or English menu, easy to use

● LCD display, Intelligent control, Use the Programmable imported high-voltage power supplyReliable performance

● Programmable operation by a key setting

● Built-in international standards level parameterssimple

● Output waveform meets the requirements of 50Ω and 1KΩ impedance

 Impulse injects the phase angle: asynchronous or 0-360 °, free to set

● Max output Impulse frequence : 1200KHz

● Built-in the RS232 interface ,Remote operated by the optional control software.
Technical parameters:




Output voltage

0 .2± 4.8KV

Pulse frequency

1kHz---1200kHz ± 10%, adjustable

Pulse polarity

Positive or Negative  or Switchable


50 Ω± 20%

Rise time

5ns ± 30%

Impulse duration


50ns ± 30%


35 ns150 ns

Number of burst


Burst period

 300mS 0.15—9.99 S adjustablestep 0.01S

Coupling path

Built-in,single phase three line,16A

Built-in, three phase five line,16A

Working power supply

AC 220V ± 10% 50/60Hz

Ambient temperature

15  -35

Outline dimensions

435*420*185 mm

Company Profile

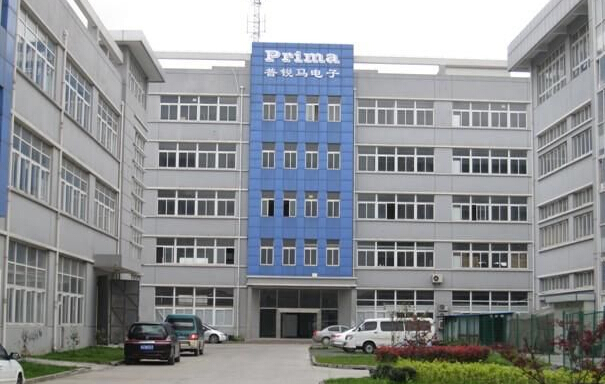

 Shanghai Prima Electronic CO., Ltd. which is registered as a high-tech enterprise by Shanghai Science Committee, locates in JiuFu economic develop zone of Shanghai. Prima provides professional EMC testers with consolidated function as research, production, sales and service. Prima has been certified by TUV ISO9001: 2000 international standard quality system, and such quality system requirements has been carried out through related production process thoroughly. Prima continues to build up brand by focusing on self management and provide better service. Employee is treated as the core competitiveness of Prima, more than 90% employee are university graduated with rich experience in both product and industry . Technical strength of Prima promises continuous improvement in technical solution and excellent after-sale service.
Prima provides more than 20 models of high tech products with independent intellectual property. Main product line includes: Electrostatic discharge generator, Electric fast transient (burst) generator, Surge generator, Voltage dips and interruptions generator, combined disturbance simulator, Automotive supply simulation, etc. All products’ common virtue includes stable performance, easy operate, enhanced anti disturbance and in compliance with international standard of IEC61000-4, national standard GB/T17626 and ISO-7637.
Prima successfully developed advanced LCD smart product in 2005, which covers the blank field of same product line in China. In same period, combined disturbance simulator EED2005 is accomplished as the unique instrument to be applied in various fields. From then on, Prima has been always the leader in EMC test field in China. Comparing with competitor, Prima’s instruments provide same function with economic cost, which satisfied most of customers’ demand including overseas client. As of above mentioned factors, Prima is awarded appraisal for excellent solution and service from wide range of customers.
