Quick Details
Description

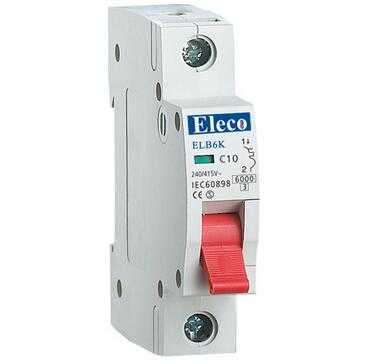

Model NO.:ELB6K Series
Breaking Capacity:Low Voltage Circuit Breakers
Operation:Manual Type
Speed:High-Speed Circuit Breaker
Arc-extinguishing Medium:Air
Installation:Fixed
Structure:MCB
Poles Number:1p.2p.3p.4p
Type:Circuit Breaker
Function:Overcurrent Protection
Certification:ISO9001-2000, CE, CB, Semko
Protection:Against Overload and Short Circuit
Rated Current in:0.5
Number of Poles:1
Protection Degree:2
Width:3
Trademark:Eleco
Origin:Zhejiang, China
Standard: Confirming to EN / IEC60898
Breaking capacity: 6kA
Protection: Against overload and short circuit
Rated current In: 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Rated voltage: 1pole 230/400V AC 50/60Hz
2,3,4pole 400V AC 50/60Hz
Rated insulation voltage Ui: 500V
Rated impulse withstand voltage Uimp: 6000V
Energy limiting class: 3
Ambient temperature: -5ºCto +40ºCpursuant to EN / IEC60898
Characteristic: Thermal operating limit: (1.13-1.45) x In
Magnetic operating: B: (3-5) x In
C: (5-10) x In
D: (10-20) x In
Number of poles:1P,1P+N,2P,3P,3P+N and 4P
Type of trip: Thermal / magnetic release
Type of terminal:Lug type and Pin type
Terminal capacity:16mmflexible or 25mmrigid up to 25A ratings
25mmflexible or 35mmrigid for 32A to 63A ratings
Protection degreez: IP20
Installation: Mounting on 35mm DIN rail
Width: 17.5mm per pole
|
Category
|
Operations
|
Operation Frequency
|
Rated Current
|
|
Electrical Endurance
|
4000
|
240/h
120/h
|
0.5~32
40~63
|
|
Mechanical Endurance
|
10000
|
240/h
|
0.5~63
|
ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
