Quick Details
Description
- Condition:New
- Application:Profile
- Plastic Processed:PVC
- Screw Design:Double-screw
- Automatic Grade:Automatic
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:Anda for UPVC window making machine
- Model Number:YF
- Voltage:380v/50hz/3Phase or customerized
- Power(W):37kw
- Dimension(L*W*H):22m*1.8m*2.3m
- Weight:8-10T
- Certification:CE ISO
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12months
- Name:PVC UPVC window making machine
- Motor:SIEMENS Brand
- Inverter:ABB Brand
- Color:Customizable
- Raw material:PVC Resins+CaCo3
- Output:depends
- Processing Type:Extrusion
- Temperature control:Ormon
- Cooling way:Recycling Water

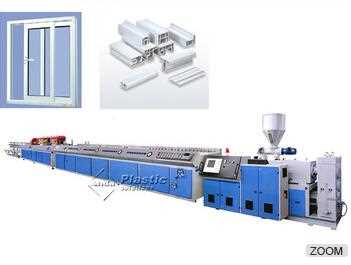

UPVC window making machine is used to produce UPVC profiles for PVC window and door. the profile will be reinforced by steel, so it also called plastic steel profiles. together with various mould, the extrusion line can produce various kind UPVC profiles for 80 sliding window and 60 casement window.
UPVC window making machine is made up of conical twin screw extruder, PVC profile mould, vacuum calibration& cooling table, haul off machine, cutter, stacker. After equipped with correspondent co-extruder, the rubber seal or the surface color can be co-extruded online. From the material feeding until the stacking, it is fully automatic.
Technical parameter
|
model
|
Max. product length
|
Extruder
Model
|
Vacuum calibration table
|
Hauler
|
Cutter
|
|
Vacuum pump
|
Water pump
|
Length
|
Motor
|
Motor
|
|
YF-180
|
180mm
|
55/110
|
5.5kw×2
|
4.0kw×1
1.5kw×1
|
4000mm
|
1.1kw×2
|
2.2kw×1
|
|
YF-240
|
240mm
|
65/132
|
5.5kw×4
|
4.0kw×1
2.2kw×1
|
6000mm
|
1.5kw×2
|
2.2kw×1
|
|
YF-300
|
300mm
|
80/156
|
5.5kw×4
|
4.0kw×1
2.2kw×1
|
6000mm
|
1.5kw×2
|
2.2kw×1
|
Anda is pioneer supplier of integration solution for plastic processing equipment from china. we provide whole factory plan, installation, commissioning, training and so on to customer. So far, more than 1000set production line or single machine supplied by anda company are running around the world.
Anda main products:
PVC ceiling panel making machine
PVC wall panel production line
WPC wall panel production line
PVC marble sheet extrusion machine production line
Double color UV printing machine, transfer printing machine, lamiantion machines for PVC ceiling panel,wall panel,PVC door panels
ASA composited PVC roof tile extrusion machine and production line
PVC edge band production line with double screw extruder and single screw extruder
PVC profile extrusion machine and production line
PVC pipe extrusion machine and production line
PE PPR pipe extrusion machine and production line
PVC pulverizer machine
PE pulverizer machine
hot and cooling PVC mixer for compounding
Anda company was established by professional, passionate &responsible peoples who has long time experience in china plastic machines industry.Since inception, Anda company team always believes that excellent product quality, reasonable price and professional fast service is the basis for long term cooperation with our customers. Therefore, anda company apply very strict rule for quality, and make high standard level for product quality. At same time, we striving to reduce production cost to offer better price to our customers. And, we also pay much attention to service, we consider service as important as sales work, we continuously train our service stuff, improve their service ability and service attitude, so that this team can provide in time, most professional service to each of our customer around the world.
Our business philosophy:
Survival on quality, develop by reputation!
Win-win cooperation, develop and grow stronger with customer!
To merit customer's trust, lifelong friend since a cooperation!
Our vision:
To be global famous plastic extrusion solution provider with high reputation!
