Quick Details
Description

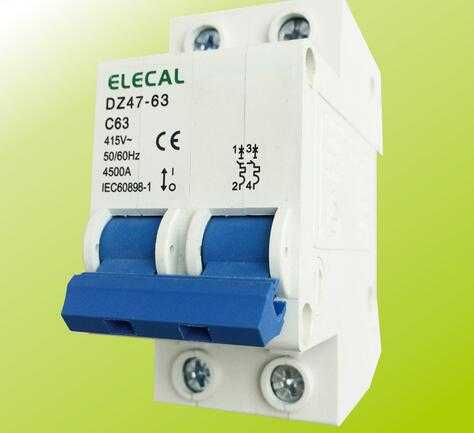

- Model NO.: DZ47-63 2P
- Operation: Manual Type
- Arc-extinguishing Medium: Air
- Structure: MCB
- Type: Circuit Breaker
- Certification: ISO9001-2000, CE, Tc-Ru
- Transport Package: Carton
- Origin: Wenzhou
- Breaking Capacity: Low Voltage Circuit Breakers
- Speed: Normal Type Circuit Breaker
- Installation: Fixed
- Poles Number: 2
- Function: Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB, Tc-Ru
- Trademark: ELECAL
- Specification: DZ47 -2P
- HS Code: 85362000
Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A
Poles:1P, 1P+N, 2P, 3P, 3P+N,4P
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :6000/10000A
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree:2
Thermo-magnetic release characteristic: B,C,D
Mechanical Features
Electrical life:8,000
Mechanical life:20,000
Contact position indicator: Yes
Protection degree:IP20
Reference temperature for setting of thermal element:30ºC
Ambient temperature (with daily average≤35ºC): -5ºC...+40ºC
Storage temperation: -25ºC...+70ºC
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N*m 22 In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on
We have an excellent working team. We produce every electric appliance carefiully and responsibly
Our electric appliances are used all over the word. We happily supply best productions and best service for every one
We hope cooperate with every friend from the word.
