Corrugated fin forming machine

1. Performance, reliable quality, 2. High efficiency and easy operation 3. Low noise Please contact us! Email:

Product Details

Quick Details

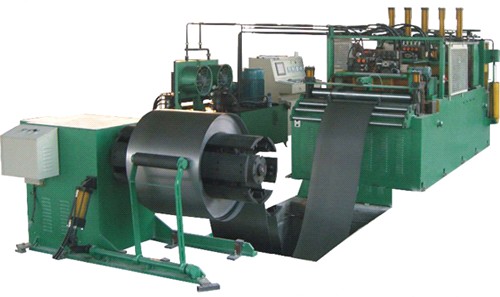

BW1300 Corrugated Band Former is the latest and most practical equipment for producing transformers of wave-shape oil tank. The machine consists of unroller, machine body, hydraulic system and electrical control system. The machine body is made up of such sections as materials guidance, feeding, position guidance, materials pushing, front pack, rear pack, edge folding, shearing and of parts collection. The machine is nice in outlooks, rational in structure and easy in operation (1~2 labors per shift). The machine is renowned for hydraulic driving, automatic control, low noise, stable running and human-computer dialogue display. The computer unit in the machine can perform the processes of shearing, forming and edge folding at one stroke according to data input. Since its production, the machine has been proven to have lasting performance, reliable quality, high efficiency and easy operation.
Main Technical Parameters
Steel plate width
Steel plate thickness
Corrugation height
Corrugation pitch
Net clearance between corrugations
Number of corrugation band sets
Corrugation band length
Folding height
Length of box board tips (front gap)
Length of box board tips (rear gap)
Forming speed
Total power of motors
Total weight
Floor space

Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
