Quick Details
Description
- Type:Wrapping Machine
- Condition:New
- Application:Beverage, Commodity, Food
- Packaging Type:Cartons, Case
- Packaging Material:Plastic
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:380V/220V
- Power:1.23KW
- Place of Origin:Shanghai, China (Mainland)
- Brand Name:CONSUNG
- Model Number:CR-1650B
- Dimension(L*W*H):500-1200(L)*500-1200(W)*1800(H)
- After-sales Service Provided:Engineers available to service machinery overseas

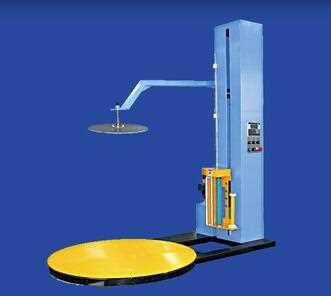

Factory price pallect stretch wrapping machine adopts the servo motors as movement parts, PLC controls the machine, with the self-induction system to induce the cartons or cases, reliable and endurable in use.
At the beginning and finally,the operator only have to attach and cut the stretch film . Simply place the pallet load on the machine, and pull a lanyard switch while backing away. Pallet stretch wrapping machine will perform the entire wrap cycle automatically without the need for an operator to tie the film tail to the load at the beginning of t he cycle, and detach it at the end. This will greatly impact the efficiency of your stretch packaging operation by keeping your operators busy with other tasks while the machine is wrapping.
By wrapping the film, the appearance of packed product is more beautiful , Pallet stretch wrapping machine can protect the cartons or cases from the moisture, dust, leaking, or pollution , …etc, more and more companies choose this machine to reduce the extra consume during transportation .
pallet wrapping machine is applicable for bulk cargo pallet wrapping, applicable for chemical fiber, electronic, electrical, chemical, food, beverage, paper, ceramics, building materials and other industries logistics packaging.
|
Model
|
CR-1650B
|
|
Wrapping Size(L×W)
|
500-1200(L)*500-1200(W)*1800(H)
|
|
Turntable Diameter
|
∅1500mm ∅1650mm [∅1800mm][∅2000mm]
|
|
Turntable Height
|
85
|
|
Stretch System
|
250-400%
|
|
Turnable Weight Capacity
|
2000
|
|
Wrapping Height
|
1000-1800
|
|
Control System
|
PLC control, with self induction system, layers and speed adjustable
|
|
Power Supply
|
220V 50HZ 1.23KW
|
|
Turntable Speed
|
1-12
|
|
Air Consumption
|
0.4-0.6
|
|
Top Plate
|
∅500-600
|
Shanghai Consung Intelligent Technology Co., Ltd. is specialized in labeling machines, filling machines, packing machines etc. We focus on packing machinery industry. Consung can supply complete packing equipment of various specifications according to customer's demands. With an experienced and professional team, we have exported our products to many countries and regions all over the world.
Our company pursues the spirit of "People-oriented, Pioneering and innovation". We rely on strong technical team, advanced beverage machinery manufacturing technology and professional practical experience accumulated by engineers, providing innovative technology, excellent product quality and good service. Our goal is to create the biggest value for our customers.
All the time, we regard quality as the essence for enterprise development. From production to after-sales service, Consung's high quality service is the biggest quality for customers.
We always take t customers' view as the guide. Consung is hoping to develop together with you! Your reliance is our biggest motivation!
