• CNC metal lathe TX-75D

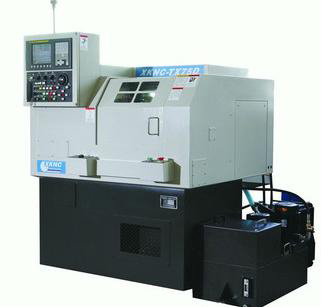

CNC metal lathe TX-75D

CNC lathe 10 tools Please contact:q56982365@126.com

Product Details

Quick Details


hese series machines are high precision CNC machines with good performance-price ratio. The high grade cast iron bed, linear guide rail and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0I mate control system. The machines, with a new appearance, easy-operated panel and full enclosed protection, for turning , boring, drilling, tapping and milling operations

ITEMS XKNC-75D (30mm) ( Hydraulic)
Max. turning diameter Φ 80mm
Hydraulic chuck dia Φ 100mm
Spindlebore diameter Φ 30 mm
Number of toos 10
Spindlespeeds Max. 4500 r/min
Spindle motor power 3.7/5.5KW
Feed motors 0.75/1.2KW
X-axis travel 95mm
Z-axis travel 210mm
Rapid traverse rate X 16m/min
Rapid traverse rate Z 20m/min
Power source 10kVA
Packingdimensions 2160× 1600× 1800mm
Total weight 1000kg
System FANUC Oi TD
Language 15kinds of language, including English, Russian etc.
Packing Wooden case

Company Profile

our company is the first domestic precision numerical control machine tool manufacturer to bring in advanced foreign technology and manufacturing experience; it is also a Sino-Japanese joint venture with national innovative and high technology accreditation.Xi'an Kitamura is running the famous Brand XKNC in China.
Now it is also the most important partner of the famous Swiss brand TORNOS in China, and running the XKNC-TORNOS joint-venture to provide CNC lathe.
Primarily engaging in the production of small precision numeric control machine tool, Xi'an Kitamura integrates processing, production, sales, technical training and service as a one-stop shop. Its products are extensively applied in communication, refrigeration, optical instrument, household appliances, medicine, automobile, motorbike, electronics, special electrical machine, and timepiece industry.
High performance detection means, advanced measuring instruments, and strict control on products, parts and components guarantee the high quality of Kitamura machine tool.
Company product line covers a total of 6 main series in more than 60 specifications, such as Xi'an Kitamura series gang tool CNC lathe, TX series rotary turret CNC lathe, S series Longitudinal Cutting CNC Lathe, ZJ divided drilling and milling machine series, vertical machining center jointly produced with Kira company, and automatic cutting machine in cooperation with Akebono Kikai Co., Ltd.
The manufacturing process and technique of Xi'an Kitamura possesses an obvious brand advantage and tops in market share in the industry
By engaging and converting the most advanced technology, philosophy and process of precision machine tool in the world, Xi'an Kitamura stands for a domestic replacement for imported small-sized high-end machine tool and promoting a stronger equipment manufacturing industry of China.
