Quick Details
Description
Usage
CAPG bi-metallic Parallel Groove Clamps ( bimetallic Parallel Groove Clamps) are used for the connecting and branching of aerial and other aluminium and copper conductors in applications where no mechanical load is existent.
Feature
1) Easy installation and good conductivity
2) Forging process creates a high strength performance
3) Slotted holes allow adjusting for varying conductors on each side
4) High strength corrosion resistant AL-alloy with copper sheet
5) Oxide inhibitor in contact surfaces avoid oxidation.
6) Serrated transverse grooves for maximum conductor contact
7) Interface between aluminium clamp body and tap copper shape is protected.
8) insulating covers is select-able for protection and insulation.

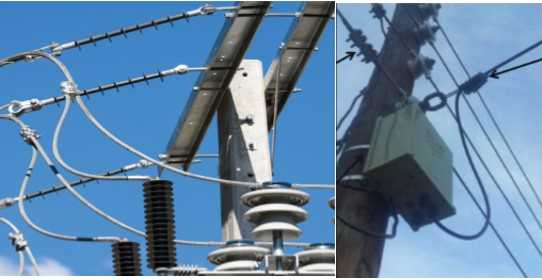

Application
bimetallic PG Clamps used for connection of Aluminum conductors with copper tap-off conductors

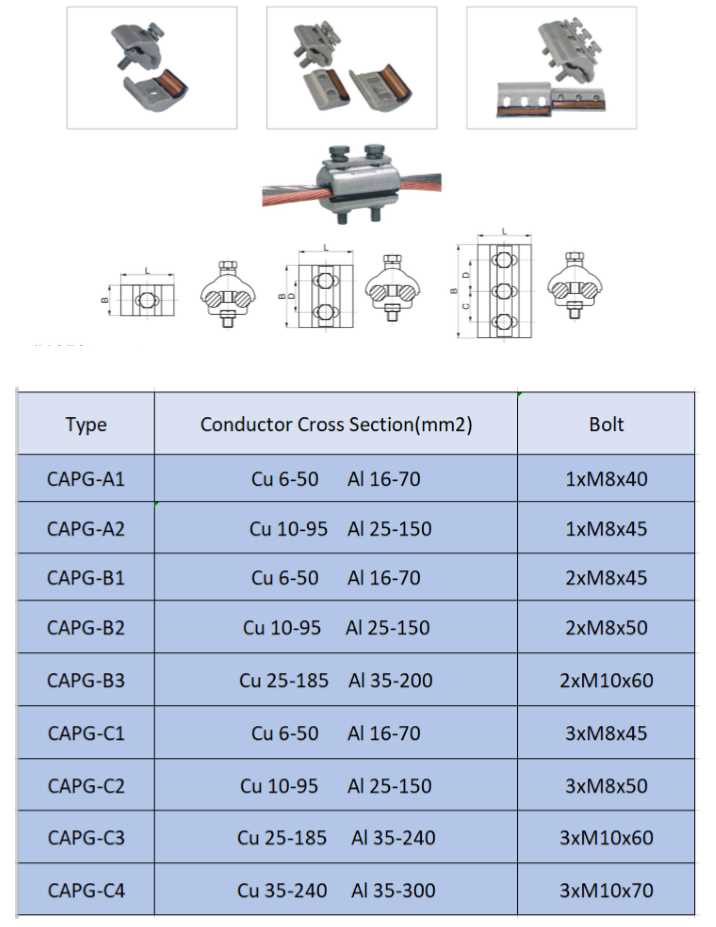

Specification
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
Contact us
Email: Claire.yen@getotelecom.com
Whatsapp/Tel: 86-13671295302
Skype: claire.yen3
Web:exportimescheck**exportimesexportimesgetotelecom.com
Geto Telecom is a reputable supplier in telecommunication industry, which owns three production centers spread in Shandong, Hebei, Zhejiang province. We design and OEM pole line fittings, optic fiber cable and accessories.
To achieve the goal of offering not only qualified, but cost effective products, we are always on the way to optimize production procedure, control cost, train staff, improve after-sales service as well as adjust transportation portfolio.
It is far more enough to deliver only satisfied products, we are here to provide more value added service.
We can offer:
Product consulting service
Cost saving advice
Fast response feedback to needs
Professional and complete reference documents
Safe and cheap transportation solutions
We care what clients care, and we do what we can do to beyond client’s expectation.
To us, business is not just earning money, but a way to promote growth of both parties. We will never stop here, to be better is our motivation forever.
