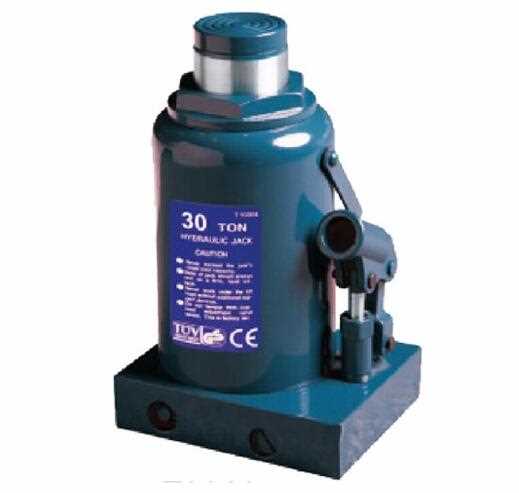

• BRJ-001 US standard ASME universal hydrualic bottle jack

BRJ-001 US standard ASME universal hydrualic bottle jack

US standard ASME universal hydrualic bottle jack r is ASME certificated,it is best used for lift the car and light trucks,the well design can make the lifting for long time,safety and easy to operate

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM
  • Model Number: BRJ-001
  • Type: Bottle Jack
  • Certification: ASME
  • Min Height: 181mm
  • Max Height: 515mm
  • Capacity (Load): >50T
  • Color: Red
  • Material: Cast Iron
  • Name: Hydraulic Bottle Jack
  • Application: Lifting
  • Product name: Hydraulic Lift Jack
  • Packing: Color Box Packing
  • Warranty: 1 Year
  • Operation: Manual
  • Payment Term: 30% Deposit
  • Use Area: Vehicle Repair Jack



US standard ASME universal hydrualic bottle jack r is ASME certificated,it is best used for lift the car and light trucks,the well design can make the lifting for long time,safety and easy to operate

product technical data as follow

Item

Capacity

Max H

Lift H

Adjust H

Weight

certificate

BRBJ-001

2Ton

181mm

116mm

48mm

2.3kgs

ANSI/ASME

BRBJ-002

4Ton

194mm

118mm

60mm

3.1kgs

ANSI/ASME

BRBJ-003

6Ton

216mm

127mm

70mm

4.3kgs

ANSI/ASME

BRBJ-004

8Ton

230mm

147mm

80mm

5.4kgs

ANSI/ASME

BRBJ-005

10Ton

230mm

150mm

80mm

6.4kgs

ANSI/ASME

BRBJ-006

12Ton

230mm

155mm

80mm

7.4kgs

ANSI/ASME

BRBJ-007

16Ton

230mm

150mm

80mm

8.3kgs

ANSI/ASME

BRBJ-008

20Ton

242mm

150mm

60mm

10.6kgs

ANSI/ASME

BRBJ-009

30Ton

240mm

130mm

/

20.1kgs

ANSI/ASME

BRBJ-010

50Ton

236mm

120mm

/

28.3kgs

ANSI/ASME

BRBJ-011

100Ton

335mm

180mm

/

71kgs

ANSI/ASME



BRJ-001 US standard ASME universal hydrualic bottle jack
