Quick Details
Description
- Condition: New
- Application: Pipe
- Plastic Processed: PVC
- Screw Design: Double-screw
- Automatic Grade: Full automatic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: BEIRUI
- Model Number: SJSZ65/132
- Voltage: 380V 50HZ 3Phase(Customized)
- Power(W): 37KW
- Dimension(L*W*H): 4.2m*1.5m*2.4m
- Weight: 5000kg
- Certification: CE ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Inverter brand: DELTA
- Temperature Control Meter brand: Ormon
- Contractor brand: SIEMENS
- Warranty: 12months
- Product Time: 15days
- Motor: SIEMENS BEIDE
- Barrel Material: 38CrMoAlA
[Introduction]

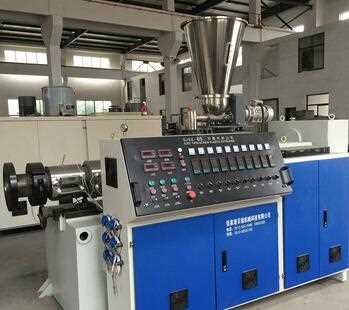

1.SJSZ series of conical twin-screw extruder is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments.
2.It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc.
3.The screw has applied oil cooling system. Bareel is cooled by special wind cooling system.
4.Vacuum exhausting and material feeding device is fixed with machine.
|
Model
|
SJSZ45
|
SJSZ51
|
SJSZ65
|
SJSZ80
|
SJSZ92
|
|
Screw diameter(mm)
|
45/90
|
51/105
|
65/132
|
80/156
|
92/188
|
|
Rotational speed of screw(r/min)
|
1-45
|
1-45.5
|
1-38
|
1-36.9
|
1-34.7
|
|
Effective work length of screw(mm)
|
1070
|
1100
|
1440
|
1800
|
2500
|
|
Main power (kw)
|
15
|
22
|
37
|
55
|
110
|
|
Barrel heating power(kw)
|
9.6
|
11.5
|
24
|
36
|
88
|
|
Capacity(kg/h)
|
110
|
125
|
250
|
360
|
1000
|
|
Center height (mm)
|
1000
|
1000
|
1000
|
1100
|
1200
|
|
Net weight(kg)
|
2800
|
3000
|
4000
|
5000
|
5500
|
|
Dimension(mm)
|
3300*1200*
2000
|
3360*1290*
2100
|
4235*1520*
2450
|
4750*1550*
2460
|
6000*1600*
2500
|
