Quick Details
Description
- Type: Other
- Condition: New
- Application: Blister Sealing Machine
- Packaging Type: Blister Sealing Machine
- Packaging Material: Plastic
- Automatic Grade: Blister Sealing Machine
- Driven Type: Blister Sealing Machine
- Voltage: 3P*380V*50Hz
- Power: 15KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HANSWELD
- Model Number: HSD-15KW-4AC
- Weight: 1500KG
- Dimension(L*W*H): 1500*1800*2300
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- High Frequency: PVC Blister Sealing Machine
- Color of the machine:Green&Blue&White&at customer's option
- Certificate: CE
- PVC blister: Welding Machine
- Packaging: Plywood case
- OEM: YES
- PACKING: PLYWOOD CASE
- SHIPPING: 25 DAYS AFTER ORDER CONFIRMED
- SHIPPING PORT: SHENZHEN
- MOQ: 1SET

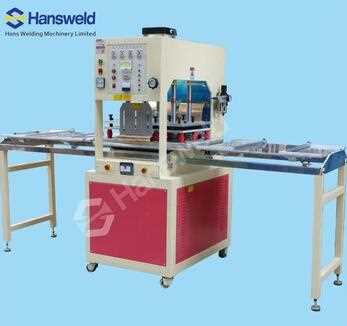

Our PVC Blister Sealing Machine is made for PVC blister,PVC clamshell,PVC blister packaging ,APET Blister
APET clamshell ;
We also offer the automatic rotary style packing machine with manipulators which greatly save the cost of labor ; Please contact us for furthur information :
Please check the paramemter as per below :
|
Model
|
HSD-8KW-4AC
|
HSD-10KW-4AC
|
HSD-15KW-4AC
|
|
Power
|
8000W
|
10000W
|
15000W
|
|
Power Supply
|
380V 3P 50HZ
|
380V 3P 50HZ
|
380V 3P 50HZ
|
|
Frequency
|
27.12MHz
|
27.12MHz
|
27.12MHz
|
|
Input power
|
15KVA
|
18KVA
|
25KVA
|
|
Rectifier
|
SILICON DIODE
|
SILICON DIODE
|
SILICON DIODE
|
|
Oscillation tube
|
7T69RB
|
E3069
|
8T85RB
|
|
Max pressure
|
500KG
|
800KG
|
1000KG
|
|
Gap of electrodes
|
200MM
|
200MM
|
200MM
|
|
Cylinder Stroke
|
100MM
|
100MM
|
100MM
|
|
Size of upper electrode
|
300*400MM
|
300*400MM
|
450*500MM
|
|
Max Welding surface each work cycle
|
240cm2
|
300cm2
|
450cm2
|
|
Welding time
|
0~10S Adjustable
|
0~10S Adjustable
|
0~10S Adjustable
|
Hans welding machinery Limited , the manufacturer of the High Frequency Welding machine which known as Radio Frequency Welding machine,Tarpaulin Welding Machine , PVC cylinder tube forming machine ,soft-crease box making machine,blister packing machine,plastic welding machine etc. besides these standard machines , we also provide the plastic welding solution and customized machines to meet our customer's special needs .
We have sold our machines over 30 countries all around world and our machines has been used in many field ,such as :
Fabrication,Conveyor belts,Stationary (Office products,folder cover,Inner page of Album),
Architecture(Stretch Ceilings,Tensile membrane,Tents,Geomembranes),
Auto-mobile(Sun visor,carpet),Medical(Infusion bag,Urine bag),
PVC inflatable products(Inflatable Sota,bed,toy)
Packaging (PVC cylinder tube packaging,Soft-crease Box,Blister packaging ) ,etc ;
