Quick Details
Description
- Type: Vacuum Packing Machine
- Condition: New
- Application: Beverage, Commodity, Food
- Packaging Type: Bags, Cartons, Film, Pouch, Stand-up Pouch
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 380V
- Power: 10KW
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: ECHO
- Weight: 1600KGS
- Certification: CE ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Bag type: premade bag

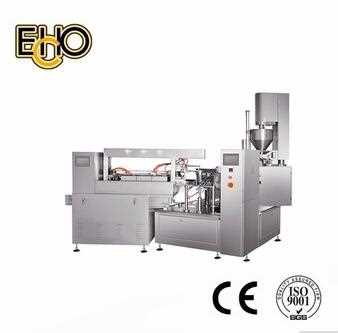

- Machine type: food automatic vacuum packing machine
- Material: 304 Stainless Steel
- packing speed: 50-65bags/min
|
Model
|
MR8-6RZK
|
|
Working Position
|
8
|
|
Working station
|
1.Giving bag 2.coding date 3.opening bag 4.filling1 5.filing 2(Liquid )6.Reserve7.Adapter8. Vacuum and output
|
|
Bag size rang
|
W:50-140mm L:80-185mm
|
|
Packing speed
|
50-65bags/min(depending on type of product)
|
|
Filling scope
|
10-150g
|
|
Total power
|
10kw
|
|
Scope of application
|
A variety of pickles, dried bean curd, fish, meat, egg, pickled mustard tuber etc.
|
|
Total weight
|
1600kg
|
|
Compressed Air consumption
|
1.0m³/min(compressed air provided by the user)
|
Features and Characteristics
1.We adopt accessories with high quality and keep the machine stable.
2.Solve various product packing problems innovatively under the reasonable cost.
3.This machine adopt premade bag ,with perfect pattern, good sealing quality, low material loss.
4.Easy operate by touch-sensitive screen, PLC and electric control system.
5.Friendly man-machine interface.
6.No pouch or pouch is not opened completely, no feeding, no sealing.Pouch can be reused which avoid wasting materials.
7.Sealing temperature detection. If failure of heating pipe, it will alarm.
8.Adjust specification of bags quickly by one handle wheel.
9.Hygienic construction, the product contact parts adopt 304 stainless steel.
Wenzhou Reador Machinery Co., Ltd. was established in 2000. We are located in the economic development zone of Ruian City with active private economy, beautiful environment, and various products. In the domestic machinery title, our company has the largest scale organization in research and development, and very complete manufacturing system. We have also established a huge scale market and after-sales service network. We are an international professional packaging mechanical equipment manufacturer which incorporates research and development, manufacture, marketing and after-sales service into an organic whole.
