Quick Details
Description
Producing process

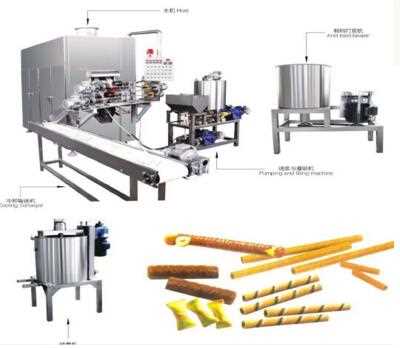

Slurry mixer and blender-------ball mill ----------pumping and filling machine-----------main mechanical body for forming---------cooling conveyor
Product introduction
Automatic egg roll/ wafer stick machine is using an new generation wafer stick machine, which is adopt the latest Japanese technology. Its combined by one material mixer, one baking machine, two pumping machine, two filling machine and conveyor. The material should be agitating by the mixer. Put the material into baking machine by the pumping machine. Use knife cut the soft part, the soft par put into roller (the equipment with two level rollers), then be stick shape. The stick’s length as your requirements. In the end. Send into conveyor. The baking machine is heated by gas. The heating system is automatic. There is alarm after finished heating. The equipments all with controller (can be program). The motor is controlled by the transducer. The baking rotary equipments speed can be controlled by transducer. The sheeter’s thickness can be adjust. The bar’s diameter can be adjust by change stick rod. The stick rod’s speed can be controlled by the transducer motor. The length of stick can be adjust by the light eye. The stick can be filling cream or other material. We offer the recipe for free.
Main parameter
|
Type
|
DJJ-R gas heating
|
DJJ-D Electricity heating
|
|
Total power
|
8kw
|
35kw
|
|
Overall dimensions
|
3400x1700x2250
|
3400x1700x2250
|
|
Gas consumption
|
LPG:4.5KG/H, Gas:8-9M3/H
|
|
|
production
|
Hollow--30kg/h, center-filled--60kg/h
|
Hollow--30kg/h, center-filled--60kg/h
|
|
Grilled round
|
1800mm
|
1800mm
|
|
Total weight
|
4T
|
4T
|
we are engaging in manufacturing food machinery for nearly 40 years, we started business on cookie biscuit making machines and bakery machines from beginning, till now we have three branch factories specializing at more than thirty different kinds of food processing lines,like biscuit plant, candy and chocolate machines, wafer biscuit machine, bread, cake machines, Marshmallow plant and liquorices candy line, everything, is our new improving plants, they are quite popular among our customers. We can produce more than thirty different kinds of production lines.The mechanical basic technology is improved from Germany-Europe, USA, combining developing countries particular needs.
· Our group was certificated ISO9001:2000 on the year1999, almost 2/3 production lines were approved CE certificates. Since our efforts, our equipments covered Russia, Ukraine, Uzbekistan, Kazakhstan, Tajikistan, Bangladesh, India, Algeria, Egypt, Libya, Djibouti, Sudan, Nigeria, Cameroon, Kenya, Mozambique, Korea, Peru, Indonesia, Malaysia, Thailand. for every kind of production line, we have special technical team only for domestic and abroad market services on machines setup and commission, there are 69 staff on this work. 12 technician staff for milling, polishing, welding, quality controlling, the managing staff and design engineers 40.
For more details about us, welcome you come visit us, visit our factory. For customers whom on food business already, we could supply more recommendations on this area; for new customers whom just want start, we can suggest some economical and helpful plans, we have professional consulting team on different projects. Thanks for your supports.
