Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Chemical, Food, Medical
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 380V
- Power: 2.2KW
- Place of Origin: Hunan, China (Mainland)
- Brand Name: HONGREAT
- Model Number: HG-Z8
- Dimension(L*W*H): 2600*1400*2200mm
- Weight: 1300KG
- Certification: ISO 9001
- After-sales Service Provided: No overseas service provided

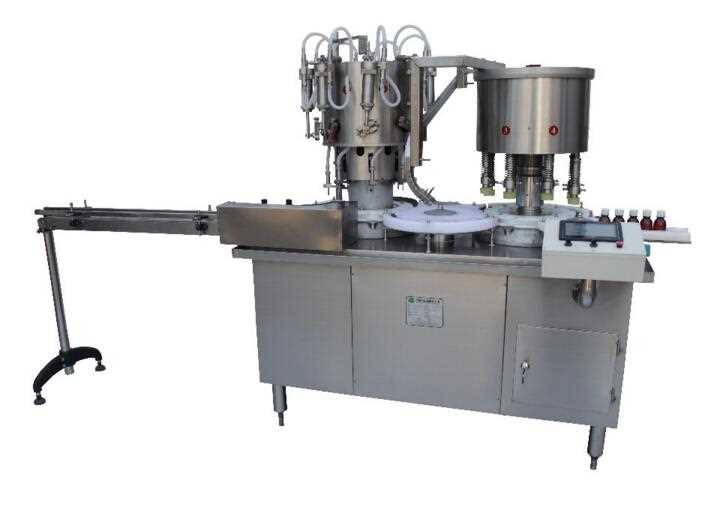

- Product name: Automatic Filling Capping Machine for Round Perfume/Cosmetic Bottles
- Production capacity: 60-300 bottles/min
- Bottle size: 5-25ml
- Measuring tolerance: Less than 2%
- Function: Liquid filling and capping
- Warranty: 12 Months
- Processing type: Automatic
- Usage: Chemical, beverage & food, etc
- Capping rate: More than 99%
- Bottle type: Any type
Main Features
Charicteristics for Automatic Filling Capping Machine for Round Perfume/Cosmetic Bottles
1. The whole machine can automatically finish unscrambling and conveying of caps.
2. All parts that contact medicine are made of stainless steel or PTEF material, being environment-friendly.
3. It is installed with imported Panasonic programmable controller to ensure visual operation and high degree of automation.
4. It has such functions as non-filling & non-conveying of caps in case of no bottles, as well as stepless speed control.
|
Product name
|
Automatic Filling Capping Machine for Round Perfume/Cosmetic Bottles
|
|
Filling volume
|
5-25ml
|
|
Production capacity
|
60-200 bottles/min, 60-300 bottles/min
|
|
Medicinal liquid
|
Tincture water, syrup & liquid
|
|
Measuring error
|
≤2%
|
|
Pass percent of cap screwing
|
≥99%
|
|
Capacitance
|
1.5kw/2.2kw
|
|
Overall dimension
|
2600*1400*2200mm
|
|
Net weight
|
1300kg
|
