Quick Details
Parameter
Product Name : Angle steel roll forming machine with punching
Condition : New
Usage : Building
Production Capacity : 0-20m/min
Voltage : 380V 50Hz 3phases
Power(W) : 4+4KW
Dimension(L*W*H) : 6500*1300*1100mm
Weight : 3.5T
Forming Steps : 9 Steps
Description
Angle steel roll forming machine with punching
If you are interested in my product, contact me at any time! I am waiting for you~
wangy@mec.com.cn
Whats app: 0086-15164015358
zhaoyh@mec.com.cn
Whats app: 0086-18842637815

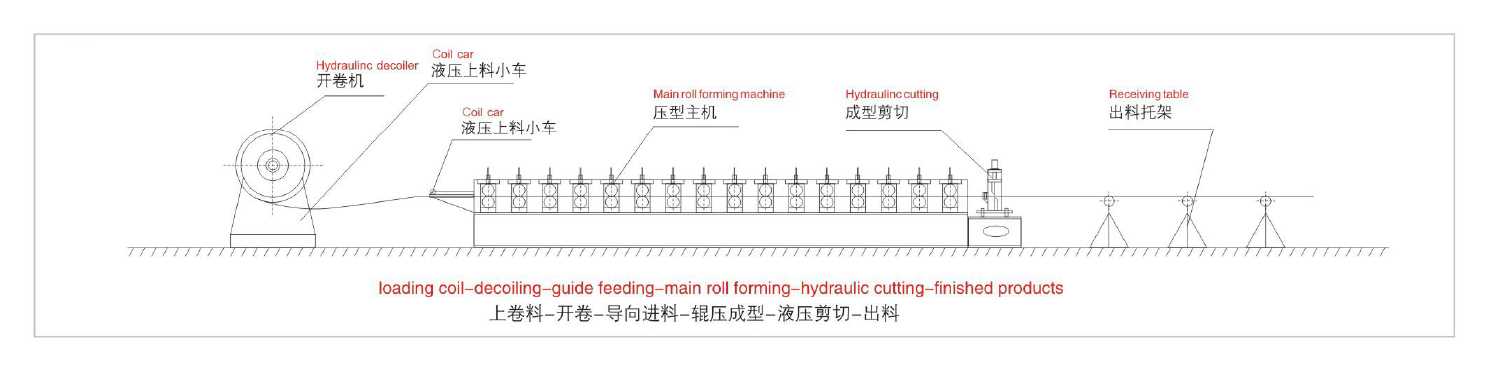

Process flow:
Process detailed:
Machine Parts

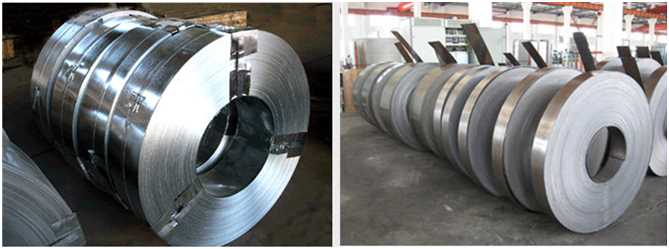

Name: Decoiler
Main Features
Inner diameter:350-450mm
Outer diameter:450mm
Coil width:300mm
Capacity:1.5T
Machine Parts

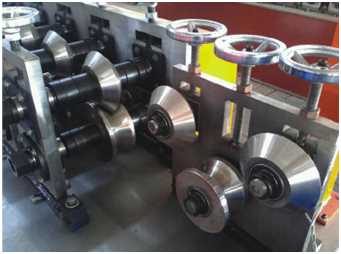

Name: Main roll forming machine
Main Features
Roller station:9 stations
Shaft material:45# steel
Diameter:50mm
Roller material: GCr12
Transport: Gear Driving
Forming Speed: 0-20m/min
Cutting Model: Hydraulic tracking cutting
Length Measurement: counter
Machine Parts

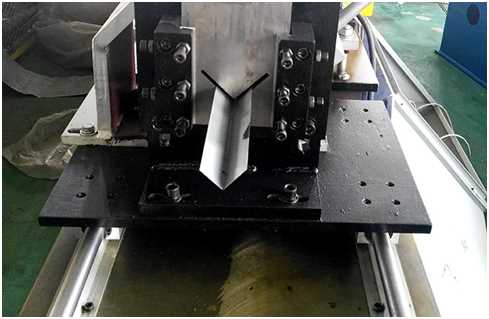

Name: Cutting System
Main Features
Cutting blade: GCr12
Cutting type: Hydraulic tracking cutting
4KW oil pump one set
Machine Parts
Name: Screen( touch screen)
Main Features
PLC control
PLC: Delta
Screen: Delta touch screen
Automatic length and quantity measurement
Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.
Error is easy to adjusted.
Two mode interchange' one is fully automatic the other one is semi-automatic
Machine Parts

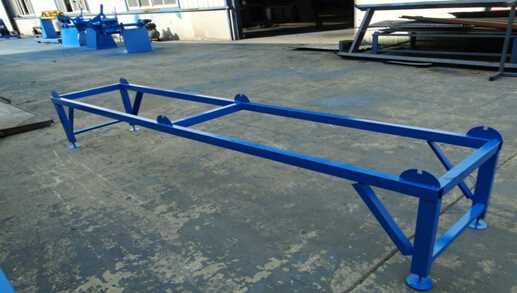

Name: Reiceiving table
Main Features
The table can be strengthening.
The finished product

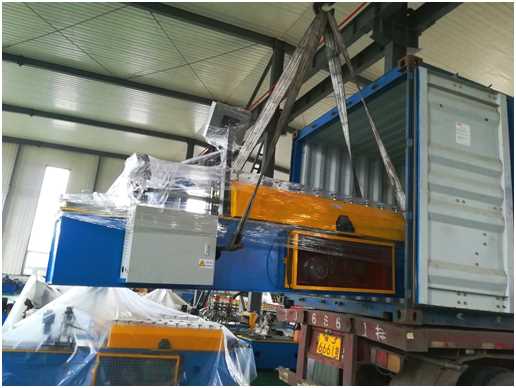

Packaging & Delivery
|
Packaging Details:
|
20 Feet Container Standard Packing For roof sheet roll forming machine
Main machine :All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: Be packed with thick cardboard, and outer side thick waterproof plastic film.
All parts inside container will be fixed very well which can keep safety and fixed for long
time sea transportation.
|
|
Delivery Time
|
45 Days
|
Our service
Pre-Sale service
- Could provide sample to client
- Help clients design profile optimize base on our engineer suggestion
- Figure out client’s technical confusion
In-Sale service
- We would provide manufacturing progress information per week
- Help you check competitive shipping company and freight
- Would help you purchase raw material for testing machine
After-Sale Service
- Our engineer are available service oversea in warranty period
- Out of warranty period we also provide remote technical support.
