Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Place of Origin: Shandong, China (Mainland)
- Brand Name: eWORLD
- Model Number: SZJ01
- Voltage: 380V /220V
- Power(W): 1.85KW
- Dimension(L*W*H): 1000*1130*1500mm
- Weight: 250KGS
- Certification: CE
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas

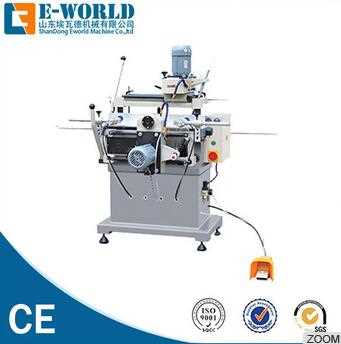

- name: Window Copy Routing Machine
- Model number: SZJ01
- Working air pressure: 0.4~0.6Mpa
- Air consumption: 30L/min
- Power supply: 380V 50Hz
- Input power: 1.85kw (0.75kw,1.1kw)
- Copy-routing range: 300*100mm
- Outside dimension: 1000*1130*1500mm
- weight(about): 250kg
- Standard: ISO
Window Copy Routing Machine ,PVC/UPVC/Plastic/Vinyl window door milling machines are used to process hardware installation holes and slots, water slots, air-pressure balance grooves and other holes or slots in uPVC windows and doors, and it is an important component part of uPVC window production line. Milling hardware holes or slots and water-slots of windows is an important step in window-door manufacturing procedure.
The quality of these holes or slots will have a direct influence on the quality of windows and doors.1).It is a special machine used for processing transmission device installing holes and grooves for
PVC/UPVC/plastic/Vinyl and aluminum doors and windows.
2).It consists of long horizontal holes, and the copy routing of vertical long holes.
3).The belt is accelerated to achieve the high milling speed (12000 r/min).
4).With the pneumatic driving system,it can process the water slots. Both vertical and horizontal processing is available with only one clamping. One time clamping can achieve 2 working procedure which ensures the precise position between holes and grooves efficiently. 1 cutter is for the lock hole milling, 3 cutters are for the copy-router milling. This machine can also make water slot milling.
5).The lock hole milling machine has two funtions: copy-routing, lock hole milling, sometimes, you donot need to buy the copy-routing machine, just buy this lock hole milling machine is enough.
This machine can also make Aluminum window profile.
6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
