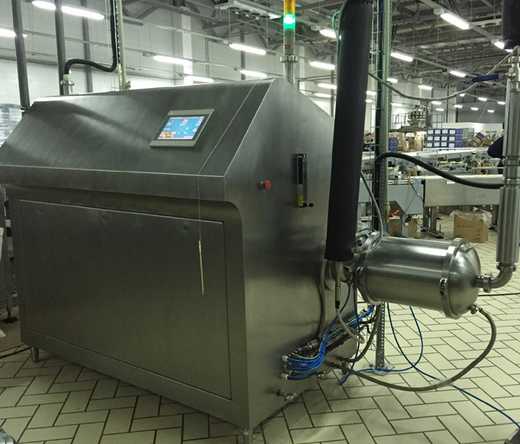

Standard version made of stainless steel aisi 304.
Max. production: 500kgs/h.
Composed by:
1.1 Storage tank (capacity 300L)
1.2. Turbo emulsifier
Technical features:
Structure made of stainless steel AISI 304 completed with movable panels.
Storage tank made of stainless steel AISI 304, jacketed, and predisposed for the circulation of the liquids for the heat exchange.
Product agitator to maintain the product homogeneous.
Head made of stainless steel AISI 304, with double wall for the circulation of the heat exchange liquids. Motorization at 7.5 kW controlled by frequency converter.
• Volumetric pump made of stainless steel AISI 304 with motorization, controlled by frequency converter studied for the head cleaning.
Product filter at the head entrance.
Pneumatically controlled counter pressure device.
Discharge pipe made of stainless steel DN50 equipped with n° 1 valve for the product sampling and a butterfly manual valve.
Pneumatic board to be connected to the compressed air line and equipped with purifier filters at active carbons for the air injection in the head and flux meter with manual adjustment of the capacity.
Electric board lodged in a separate cabinet made of MS and equipped with Siemens PLC and WeinviewTouch Screen control panel.
