Quick Details
Description
Place of Origin: China (Mainland)
Total toe: Range ±20°, Accuracy ±0.02°.
Individual Toe: Range ±20°, Accuracy ±0.01°.

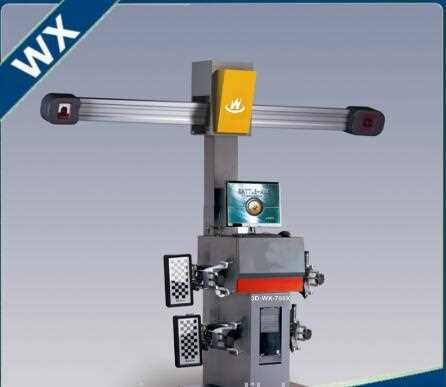

Product Name: 3d wheel alignment
Camber: Range ±10°, Accuracy ±0.02°.
Price: Factory Price
Color: Customised
Certification: CE / ISO9001
Application: Tire Workshop
Name: 3D Wheel Aligner System
Keywords: Wheel Alignment Clamps
Packaging & Delivery
| Packaging Details |
Wooden Case |
|---|
| Delivery Time |
10-15 working days |
|---|
| Model No. |
WX-708X 3d Wheel Alignment |
| Total toe |
Range ±20°, Accuracy ±0.02°. |
| Individual Toe |
Range ±20°, Accuracy ±0.01°. |
| Camber |
Range ±10°, Accuracy ±0.02°. |
| Caster |
Range ±30°, Accuracy ±0.04°. |
| KPI |
Range ±25°, Accuracy ±0.1°. |
| Setback |
Range ±9°, Accuracy ±0.01°. |
| Thrust Angle |
Range ±9°, Accuracy ±0.01°. |
| Track width |
1.2-1.7m |
| Wheel base |
1.8-3.6m |
| Power supply |
110/220v,50/60hz,1ph |
| Package size |
900mm*600mm*1300mm |
| Beam |
3050mm*400mm*430mm |
Key Features:
-Manual Camera Beam(Length:2782mm)
-Lift Height:1816-2550mm
-19" screen show measuring date
-With Static measuring,turn wheels& static Alignment measuring function
-2 pcs 5 mega pixel camera
-Distance from backside to Cabine front side:730mm
-One interface show all parameters of front wheel and rear wheel
-Can be pit application
Zhengzhou Weiyuan Mechanical Equipment Co., Ltd. is a professional auto maintenance equipment supplier.
We are engaged in product development, design, as well as OEM/ODM manufacturing. Our products have been shipped to worldwide markets (Europe, North & South America, Africa, Australia, the Middle East, Asia as well as different provinces in China).
Facing future opportunities and challenges, we will still adhere to "Seeking higher & being practical", trying to enlarge intercourse and cooperation with other producers in the domestic and overseas fields. We exert ourselves to pay back our clients with high-quality products and perfect after-sales service.
