Quick Details
Description
Place of Origin:Hebei, China (Mainland)
Brand Name:Jiubai
Model Number:FR4
Type:Insulator
Material:Porcelain
Application:High Voltage
Rated Voltage:10kv 35kv
Tensile Strength:70KN, Excellent
Color:Yellow,white ,brown
Certification:ISO 9001
standard:ANSI
Weight:5KG-25KG
OEM production:Accept
Usage: power lines
Feature:High Mechanical
Size:Customized Size

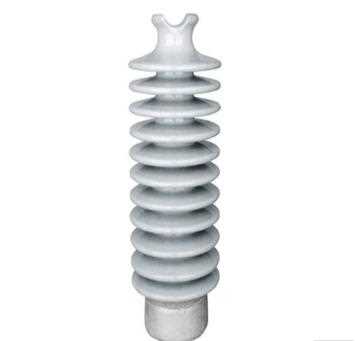

Product name:36kv High voltage electrical porcelain ceramic line post insulator
ss=MsoNormal>Technical Specifications
*Specified Cantilever Load: Up to 2800 lbs.
*Clamp Style: Per ANSI 29.7
*Clamp Material: Galvanized Metal
*kV Class: 15 – 46kV
*Frequency: 50/60 Hz
Ourporcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
Introduction.
We offers a wide range of porcelain station post
insulators. For decades, these products have demonstrated reliable
performance in various types of applications all over the world.
Porcelain insulators are the traditional choice for distribution and
transmission line, busbar and apparatus insulation. Manufactured fromhigh-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.
Application
Line post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events.
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a crossarm on the pole.
Technical Specifications
*Specified Cantilever Load: Up to 2800 lbs.
*Clamp Style: Per ANSI 29.7
*Clamp Material: Galvanized Metal
*kV Class: 15 – 46kV
*Frequency: 50/60 Hz
Title goes here.
Ourporcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
Established in 1988,HeBei JiuBai Technology Co,Ltd is a company with the business scope of design, R&D, manufacturing and selling and Located in the High-Tech Development Zon of HEBEI, The main production equipment: vulcanizing machine 23, crimping machines and vacuum kneading machine total 10 sets , mixing machine 3, 40 lathes; main test equipment: 2000KN 300KN tensile testing machine, tensile testing machine, bending test machine, 300KV frequency tester, 1050KV lightning impact tester; The products have passed the CRCC certification China railway, mainly for export and import of power products, including insulators, power fittings, electrical equipment, and realize full package of power products for overseas clients
