Quick Details
Description

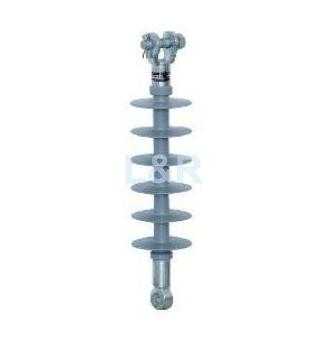

- Model NO.: 33kv 70kn
- Material: Composite Polymer
- Type: B Type Insulator
- Connection Method: Trough Type
- Certification: CCC, CE, ISO9001, SGS
- Size: Can Be Ordered
- OEM&ODM: Accept
- Specification: ISO9001: 2008
- Application: High-voltage, Low-voltage
- Structure: Post Insulator
- Usage: High Voltage Power Transmission
- Size of Bearing Capacity: 70KN
- Color: Gray
- Lifetime: Durable
- Trademark: L&R or according to customer′s requirement
- Origin: Wenzhou, Zhejiang
Basic Info.
Origin: Yueqing, Wenzhou, Zhejiang, China
Brand Name: as customer's requirement
Model NO.:Polymer Insulator
Application:High-voltage, Low-voltage
Material:Polymer
Polymer:Insulator
Export Markets:Global
Main technical parameters as follow table.
|
Product type
|
Rated voltage (kV)
|
Rated mechanical bending load
(kN)
|
Height (mm)
|
Insulation distance (mm)
|
Min creepage distance
(mm)
|
Diameter of shed
(mm)
|
Lightning impulse withstand voltage peak volume (kV)
|
P.F withstand voltage(virtual value) (kV)
|
|
FXBW-33/70
|
33
|
70
|
560
|
380
|
1130
|
92/62
|
230
|
95
|
We pay more attention to the product quality all time. All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. In order to keep good quality, we have got ISO9001: 2008 certificate.
|
Figue No
|
Catalogue Type
|
Rated Voltage (KV)
|
Specified Mechanical bending Load(KN)
|
Section Length (mm)
|
Min Arc Distance (mm)
|
Min creepage Distance (mm)
|
Lightning Withstand Voltage(KV)
|
Wet power frequency Voltage (KV)
|
|
1
|
FZSW-10/4
|
10
|
4.0
|
254 ± 1.0
|
145
|
400
|
95
|
40
|
|
2
|
FZSW-10/6
|
10
|
6.0
|
261 ± 1.0
|
161
|
432
|
75
|
42
|
|
3
|
FZSW-10/6
|
10
|
6.0
|
281 ± 1.0
|
186.5
|
432
|
75
|
42
|
|
4
|
FZSW-12/4
|
12
|
4.0
|
254 ± 1.0
|
145
|
400
|
95
|
40
|
|
5
|
FZSW-12/6
|
12
|
6.0
|
281 ± 2.0
|
161
|
432
|
75
|
42
|
|
6
|
FZSW-12/6
|
12
|
6.0
|
281 ± 2.0
|
186.5
|
432
|
75
|
42
|
|
7
|
FZSW-20/4
|
20
|
4.0
|
370 ± 1.0
|
260
|
580
|
145
|
50
|
|
8
|
FZSW-24/4
|
24
|
4.0
|
370 ± 1.0
|
260
|
580
|
145
|
50
|
|
9
|
FZSW-40.5/4
|
40.5
|
4.0
|
560 ± 1.0
|
450
|
1050
|
230
|
95
|
|
10
|
FZSW-35/4
|
35
|
4.0
|
560 ± 1.0
|
450
|
1050
|
230
|
95
|
