INR18650-2000mAh battery,2200mAh Li-ion battery manufacturer,lithium ion battery for vacuum cleaner,High security lithium ion battery

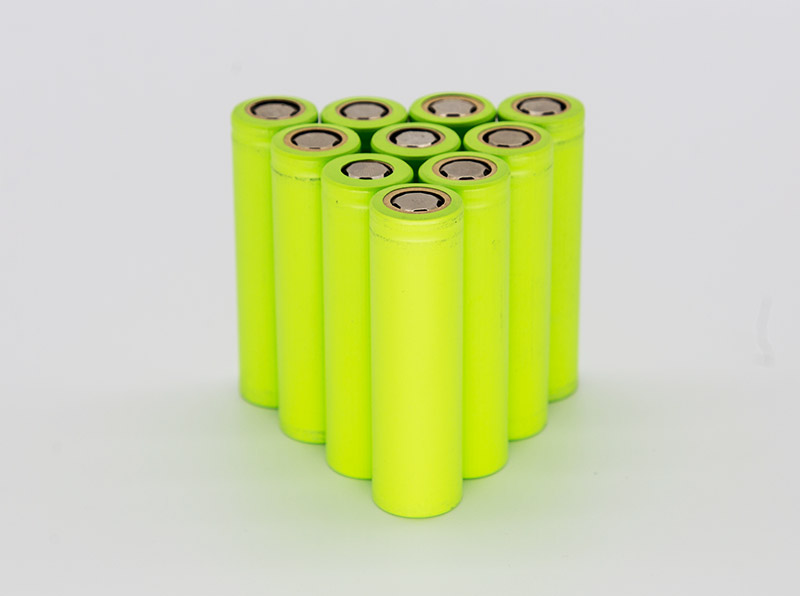

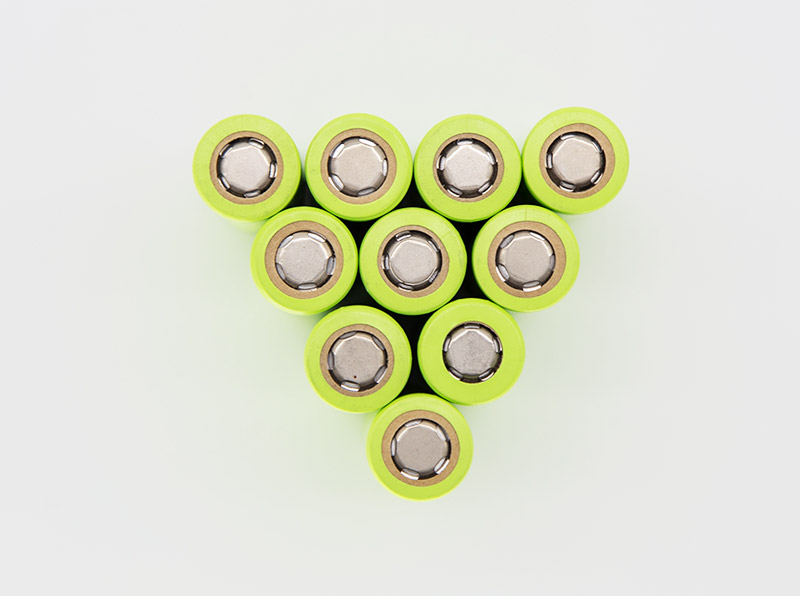

2000mAh Li-ion cylindrical battery Product Details:
|
NO.
|
Items
|
Specifications
|
|
1
|
Model
|
20P1 (INR18650-2000)
|
|
2
|
Can Material
|
Ni-Iron
|
|
3
|
Min Capacity
|
1950 mAh（0.2C）
|
|
4
|
Nominal Voltage
|
3.7V
|
|
5
|
Max. Charge Voltage
|
4.2 V
|
|
6
|
Discharge Cut-off Voltage
|
2.750V
|
|
7
|
Max. Charge Current
|
4A
|
|
8
|
Max. Continuous Discharge Current
|
20 A
|
|
9
|
Max. Pulse Discharge Current
|
30A（ 2s pulse ）
|
|
10
|
Max. Diameter（include PET）
|
18.4±0.05 mm
|
|
11
|
Max. Height (include PET)
|
65.25±0.15mm
|
|
12
|
Weight (Approx.)
|
43.0g
|
|
13
|
Impedance （Max. at 1000Hz、charged status）
|
15±3mΩ
|
|
14
|
Pack consistency
|
△Voltage △Impedance △Capacity
|
|
15
|
Charge Method (CC/CV)
|
Standard
|
0.5 C×3 hrs.
|
|
Quick
|
2C×1.0 hrs.
|
|
16
|
Operating temperature (surface temperature)
|
Charge
|
0℃～45℃
|
|
Discharge
|
-20℃～75℃
|
|
Storage
|
-20℃～45℃
|
Characteristic of High security lithium ion battery
a. Environmental conditions
Unless otherwise specified, all tests stated in this specification are conducted at temperature 23±3°and humidity under 65%.
b. Measuring equipment
(1) Amp-meter and volt-meter
The amp-meter and volt-meter should have an accuracy of the grade 0.5mA and mV or higher.
(2) Slide caliper
The slide caliper should have 0.01 mm scale.
(3) Impedance meter
The impedance meter with AC 1kHz should be used.
c. Standard charge
Charging the cell CCCV with charge current 0.5C, constant voltage 4.2V and 100mA cut-off in CV mode at
23℃for capacity.
d. Standard discharge capacity
Discharge current of 400mA (0.2C) with 2.5V cut-off at 23℃within 1hour after the standard charge.
Electrical Characteristic for High temperature resistance lithium ion battery
|
NO.
|
Item
|
Standard
|
Test Method
|
|
1
|
Discharge rate capabilities
|
A）1 C ≥97% B）5 C ≥95% B）10 C ≥95%
|
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C、5 C 、10C to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3 times beforemeeting the Standards（the same below）
|
|
2
|
capacity retention and recovery
|
Residual capacity≥94%Recoverable capacity≥*98%
|
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃，Stored for 28 days, then discharge at 0.2 C to 2.75V measuring residual capacity; Then standard charge/discharge measure recoverable capacity.
|
|
3
|
Low TemperaturePerformance
|
discharge capacity≥85% rated capacityno distortion and no rupture
|
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C down to the end-of-discharge voltage 2.50V.
|
|
4
|
Cycle Life
|
2A charge/ 10Adischarge≥500cycles4A charge/ 20Adischarge≥200cycles
|
Charge: The cell shall be charged in accordance with2A(4A)Charge condition and the end-of-charge voltage is4.15V. rest for 30mins.Discharge：10A discharge to 2.75V, one cycle is finished, rest for 60mins. Then repeat above steps, when capacity is lessthan 70% of initial capacity, the battery life is over. Discharge：20A discharge to 2.75V, one cycle is finished, rest for 60mins. Then repeat above steps, when capacity is lessthan 70% of initial capacity, the battery life is over.
|
Safety Characteristic for 2000mAh Li-ion battery supplier
|
NO.
|
Item
|
Standard
|
Test Method
|
|
1
|
Overcharge
|
No fire、No explosion
|
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
|
|
2
|
Forced discharge
|
No fire、No explosion
|
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
|
|
3
|
Short Circuit test
|
No fire、 No explosion
|
The battery to be fully charged with standard charging condition, and short the positive and negative terminals
with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
|
|
4
|
Crush test
|
No fire、No explosion
|
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
|
|
5
|
Shock test
|
No fire、No explosion
|
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
|
|
6
|
Heating test
(130°C)
|
No fire、No explosion
|
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
|
|
7
|
Temperature
Cycling Test
|
no leakage, no fire, no explosion
|
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
|
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.

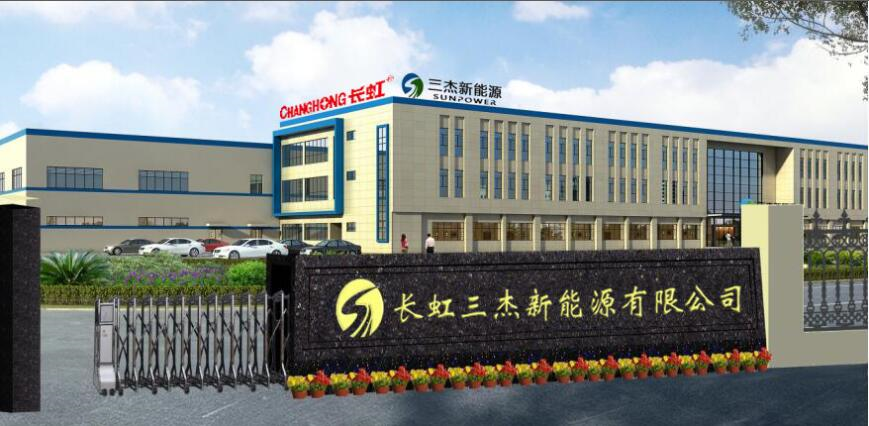

Jiangsu Sunpower Co., Ltd., founded in 2014, is located in the intersection of Zhifu Road and Xingyuan Road in Huangqiao Town, Taixing City, Jiangsu Province. Registered capital is 50 million and project land area is 60 acres, overall floorage is 40000 ㎡, including phase I construction plant of 21000 ㎡ .Phase I investment is 200 million RMB. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type lithium ion batteries.
Company products are positioned in the field of power type lithium ion battery. Discharge rate is 3 to 10 times of ordinary batteries; cycle life reaches to more than 3000 times under the condition of 0.3C charge-discharge and more than 400-1000 times under the condition of high-rate 5 to 10C, and has high security and consistency. 18650 cylindrical power lithium-ion batteries are widely used in electric vehicles, electric bicycles, low-speed vehicles, electric tools, household vacuum cleaner, model aeromodelling, military industry and other fields.
The company is committed to the development and application of high quality and high-end products. Development team is composed of technicians who won the second prize of National Science and Technology Progress, the first prize of Scientific and Technological Progress of the Ministry of Information Industry, and first-class technical personnel at home and abroad, it integrates 'outstanding supplier, outstanding manufacturing, outstanding customer', spares no effort to build domestic and foreign first-class industrial chain, creates biggest value for customers by virtue of 'outstanding team, outstanding quality, outstanding service' and creates wealth for the application of green energy.
Company uphold: "leading technology, quality first, sincerely management" concept of development, and strives to create the first brand of new energy power lithium battery.
