Quick Details
Description
2.04inch 172x72 E-Paper
![]()
The display is a TFT active matrix electrophoretic display , with interface and a reference system design. The 2.04" active area contains 172x72 pixels, and has 1-bit and 2-bit full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC.SRAM. LUT ,VCOM, and border are supplied with each panel.
Feature:
High contrast
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode
Antiglare hard-coated front-surface
Low current deep sleep mode
On chip display RAM
Waveform stored in On-chip OTP
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and source driving voltage .
I2C Signal Master Interface to read external temperature sensor
Available in COG package IC thickness 250um
Main Parameters:
|
Model
|
GDE021A1
|
|
Size
|
2.04 inch
|
|
Display Resolution
|
172(H)x72(V)
|
|
Pixel Pitch
|
0.28x0.28 mm
|
|
Outline Dimension
|
29.20(H×59.20(V) ×1.18(D) mm
|
|
Weight
|
4±0.5 g
|
|
Pixel Configuration
|
Rectangle
|
|
Controller/Driver
|
SSD1606
|
|
Logic Supply Voltage
|
3.0V
|

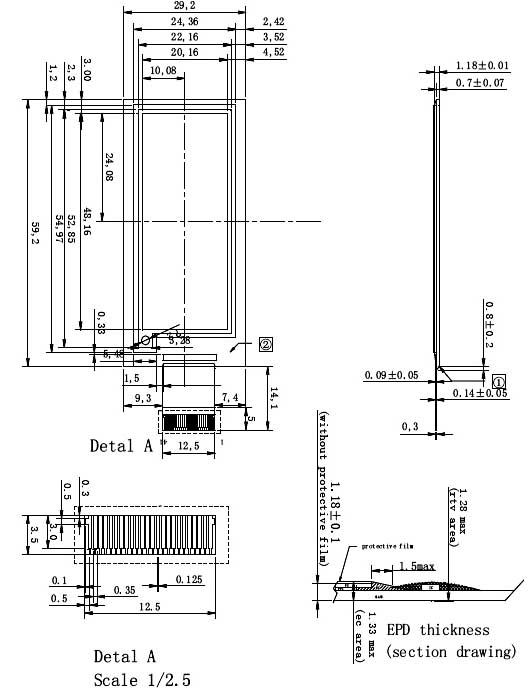

Drawing:
![]()
![]()
![]()
