  • 1.5V Alkaline Zinc Carbon Battery

1.5V Alkaline Zinc Carbon Battery

1.5V Alkaline Zinc Carbon Battery 1.Battery In Hotselling 2.No leakage 3.Each battery is reliable 4.SGS,MSDS etc.
Send Inquiry  Add to My Favorites

Product Details

Quick Details Parameter

Brand Name: : EVERBRIGHT
Model Number: : LR6
Battery Type: : Zn/MnO2
Nominal Voltage: : 1.5V
Size: : AA
Nominal Capacity: : >330MIN, 3.9 Ohm continuous discharge, End 0.9V
Short Circuit Current: : >7A
Jacket: : Metallic
PCS shrinked: : 4 PCS
Continuous discharge: : >330MIN
Place of Origin: : Guangdong, China

Description


1.5V Alkaline Zinc Carbon Battery


Basic information:

Product name
1.5V Alkaline Zinc Carbon Battery
Chemical System
Zinc-Manganese dioxide (Zn/MnO2)
Technology Criterion
IEC 60085-2:2007, 2006/66/EC
Certificate
ISO9001:2008,SGS,MSDS etc
Mercury & Cadmium
0%
Nominal voltage
1.5 Volts
Average capacity
>1700 mAh
Open-circuit voltage
1.63 Volts
Closed-circuit voltage
1.55 Volts
Diameter
13.50-14.50MM
Height
49.20-50.50MM
Average weight
23.00 Grams
Shelf life
5 Years


Detailed pictures below for your reference:

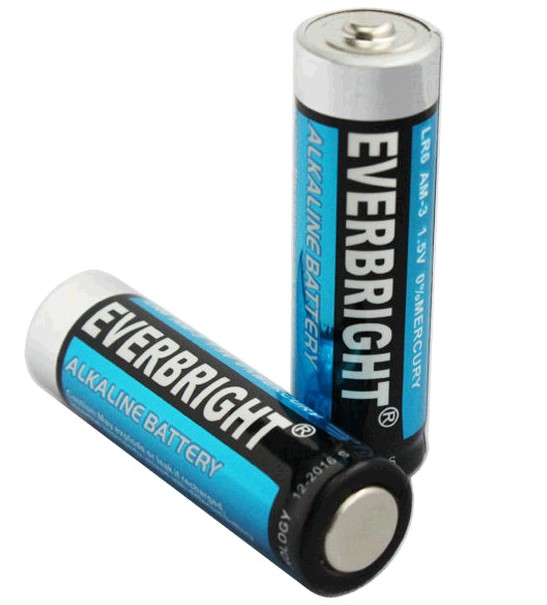

battery 1

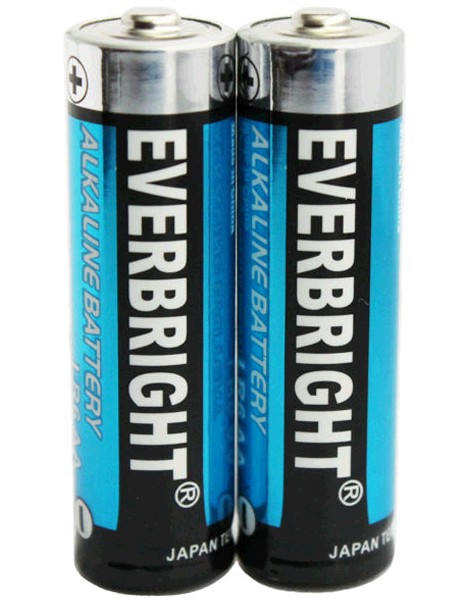

battery 2



Why choose our alkaline battery?

Quality
With over 18 years' experience in battery business, we guarantee each single piece of alkaline battery is reliable in quality.
Service
Efficient and excellent service is the basic requirement you can expect from us.
Responsibility
Your satisfaction with our battery and our service are our responsibility.


Technical data:

Art.
No.

Type


Nominal Voltage
(V)
Shelf Life
(Year)

Test Conditions
Discharge Time
IEC Standard(IEC 60085-2:2007)
EVERBRIGHT
4375


LR6
AA
AM-3

1.5


 5
20±2°C,3.9ohm, 24h/d, E.P.V. 0.9V
-----
≥330 Min
20±2°C,10ohm, 1h/d, E.P.V. 0.9V
690 Min
≥1080 Min

Quality control & performance:

1) Our alkaline battery is made of high quality raw materials which have been inspected strictly before usage.

2) Automatically computer controlled production lines effectively avoid artifical influence in production, strictly executed the quality management system to insure each alkaline battery up to IEC standard.

3) Our alkaline battery has the characteristics of strong energy,high capacity, long-durability, super leak-proof, good performance of continuous discharge, long time of intermittent discharge.


Internal Structure:

internal structure

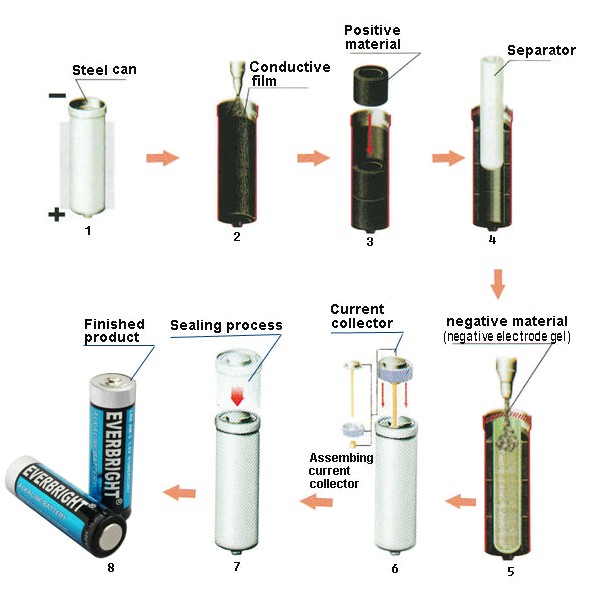

Product procedure:

produce procedure



1
Steel can
The steel can is the positive container, which is the negative connection
2
Conductive film spraying
The conductive materials are sprayed to form the conductive film on the surface of the positive can for good electrical conductivity
3
Positive materials insertion
The positive mixture is a compressed paste of manganese dioxide with carbon powder added for increased conductivity, which are inserted into the positive can
4
Separator insertion
The separator is inserted to prevent mixing of the positive and negative materials and short-circuiting.
5
Negative materials filling
The negative materials are composed of zinc powder in a gel containing the potassium hydroxide electrolyte, which are filled in
6
Current collector insertion
The assembling current collector is inserted to form the negative electrode
7
Sealing process
The battery is sealed to prevent leakage and electrolyte creep age
8
Finished product
The batteries are packed by shrink after inspecting the voltage, current and appearance


Package details:

Shrink pack
2 PCS
Inner Box
24 PCS
Colorful carton
480 PCS
Gross weight
11.30KGS
Net weight
11.60KGS
Measurement
306X188X130MM

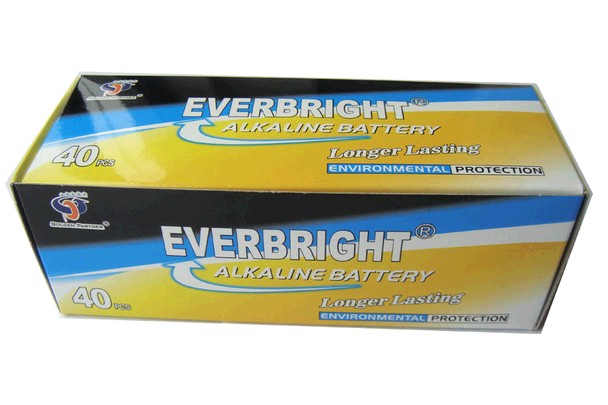

box of battery


Applications: Remote control, MP3, MP4, clocks, toys, audio appliances, radio, flashlight, camera, shaver etc.

We promise to provide you with high quality alkaline battery as well as high efficiency services.


Company Profile

 Golden Partner Logo



Chongqing Golden Partner Imp.& Exp. Co. Ltd., was established in 2004, majored in battery business, and approved Model Enterprise in E-commerce by Chongqing Foreign Trade & Economic Relation Commission in 2010.

As a professional supplier of zinc manganese battery, alkaline battery and storage battery, we produce and sell battery in brand names of EVERBRIGHT & PERFECELL, which enjoy high reputation in the Middle-east countries, Southeast Asia, South America, African countries and other markets.

Our factory possesses 5 battery production lines. Through persistent efforts for years, we have developed a scientific and effective researching and developing system on battery.

Our tenet is "Honesty First, Customer Foremost". We endeavor to bring maximum benefits to our customers with our high quality battery, as well as reasonable prices and satisfactory services.
