Quick Details
Description

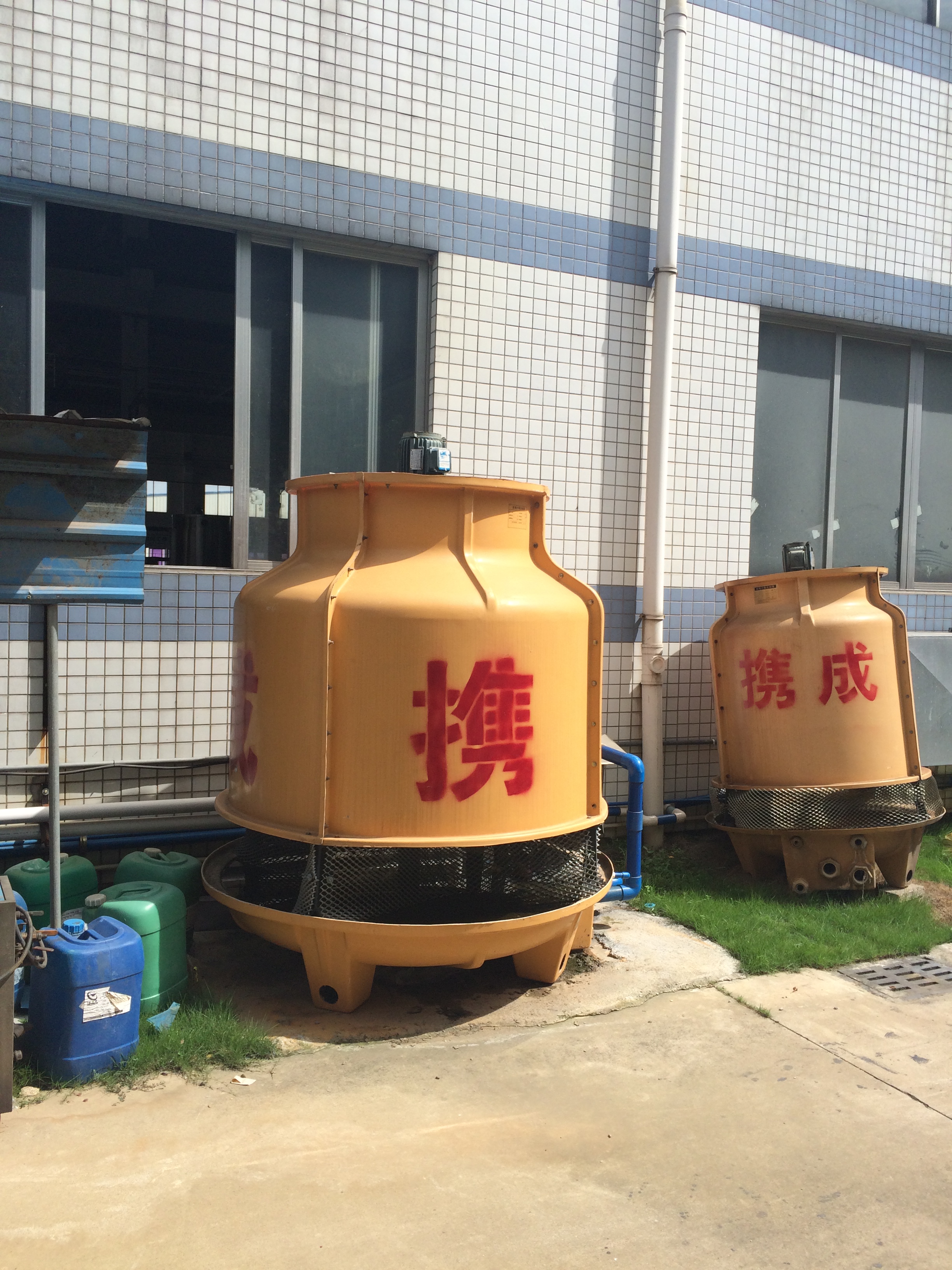

air cooling tower/brand new industrail water cooling system/high temperature big Cooling system/glass reinforced plastic cooling tower/high quality industrial cooling tower/cooling tower pvc fills/closed circuit cooling tower/crossflow cooling tower
| Specifications of 8-1000Ton Cooling Tower |
| Model |
ST |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
125 |
150 |
175 |
200 |
225 |
250 |
300 |
350 |
400 |
| Flow |
m3/ h |
7.2 |
11.7 |
14.4 |
18.5 |
23.4 |
31.2 |
39.2 |
46.8 |
62.6 |
78.1 |
97.5 |
117 |
136.8 |
156.2 |
175.5 |
195.1 |
234 |
273.2 |
312.1 |
| Air Volume |
m3/ h |
4300 |
6430 |
8250 |
10730 |
12870 |
17160 |
21580 |
25740 |
25740 |
53660 |
53660 |
64350 |
75350 |
85930 |
96525 |
107320 |
128700 |
128700 |
171660 |
| Motor |
KW |
0.18 |
0.18 |
0.37 |
0.55 |
0.55 |
0.75 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
4 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
| Sound Volume |
dBA |
47 |
48 |
50 |
52 |
54 |
56.5 |
57.5 |
57 |
59 |
60 |
60 |
59 |
60 |
60 |
54 |
67 |
56 |
56 |
5.9 |
| Approx.Net Weight |
KG |
50 |
54 |
67 |
98 |
116 |
116 |
190 |
250 |
280 |
540 |
540 |
580 |
760 |
880 |
1050 |
1080 |
1760 |
1760 |
2840 |
| Operating Weight |
KG |
195 |
290 |
300 |
500 |
530 |
545 |
975 |
1250 |
1280 |
1640 |
1640 |
1780 |
1860 |
1980 |
2770 |
2800 |
3930 |
3930 |
5740 |
| Basin Diameter |
mm |
1060 |
1060 |
1200 |
1430 |
1620 |
1610 |
1810 |
2100 |
2100 |
2700 |
2700 |
3000 |
3300 |
3300 |
4120 |
4100 |
4700 |
4630 |
5600 |
| Tower Height |
mm |
1600 |
1760 |
1760 |
1950 |
2050 |
2075 |
2180 |
2200 |
2285 |
2370 |
2370 |
2670 |
2780 |
2780 |
3850 |
3850 |
3680 |
3680 |
3840 |
Specificatons
| Diameter |
Distance |
Water Flow |
Distance |
Rotating Speed |
Efficiency |
Motor |
NPSH |
Air Cooling System Adopted |
Weight |
| mm |
m |
L/min |
m3/ H |
m2 |
R/min |
% |
KW |
V |
m3 |
T |
KG |
| 32 |
10 |
140 |
8.4 |
6 |
2900 |
45 |
0.37 |
220/380 50HZ |
3 |
5-10 |
20 |
| 100 |
6 |
10 |
| 50 |
3 |
13 |
| 40 |
13 |
250 |
15 |
10 |
2900 |
46 |
0.75 |
220/380 50HZ |
3.2 |
15-20 |
27 |
| 200 |
12 |
13 |
| 100 |
6 |
16 |
| 50 |
15 |
450 |
27 |
12 |
2900 |
55 |
1.5 |
220/380 50HZ |
3.5 |
25-30 |
36 |
| 360 |
21.6 |
15 |
| 225 |
13.5 |
17 |
| 65 |
16 |
700 |
42 |
13 |
2900 |
65 |
2.2 |
220/38050HZ |
3.5 |
40-50 |
43 |
| 650 |
39 |
16 |
| 420 |
25 |
19 |
| 80 |
16 |
1000 |
60 |
13 |
2900 |
68 |
4 |
220/380 50HZ |
3.5 |
60-80 |
65 |
| 700 |
42 |
16 |
| 550 |
33 |
19 |
| 100 |
16 |
1100 |
66 |
13 |
2900 |
65 |
5.5 |
220/380 50HZ |
4 |
80-100 |
78 |
| 800 |
48 |
16 |
| 600 |
36 |
20 |
| 100 |
18 |
1100 |
66 |
14 |
2900 |
68 |
7.5 |
380/66 50HZ |
4 |
100-120 |
88 |
| 800 |
48 |
18 |
| 700 |
42 |
20 |
We reserve the right to change specifications without prior notice.
FEATURE:
1.Using high quality bearing ,with low noise.
2.Using high quality,wearing-resistant seal,without water leakage.
3.Installing in any position of pipeline.
4.Not limited by space.
5.Without refueling,water-proof,low power consumption.
6.If necessary,high temperature pump can be customized for customer.
