  • voltage transformer

voltage transformer

It is outdoor, single phase and oil-immersed inductive voltage transformer, which is used for metering and relay protection of 66kv, 110/132kv, 220kv 50/60Hz. Please contact us! Email:

Product Details

Quick Details

Description



Email: liujing@mec.com.cn
Skype:liujingmec
MSN:lijing_0612@126.com

It is cascade structure, which the primary winding has four frade grade windings surrounded on the limbs of two single phase two-limb core. The insulation consists of high voltage cable paper, phone paper and cardboard etc., which will be immersed with transformer oil after desiccating under vacuum. It has advantages of stable and reliable performance of insulation, rich successful experience, a long life time and convenient maintenance.

Perfect fluidity performance of transformer oil is good for heat dissipation. It also has self recover ability for the failure of partial discharge caused by air bubble and dust.

It has three secondary windings, which has individual measuring and protection winding.

There is a multi function oil drain valve on the base, which make it convenient for sampling, draining and refilling.

The secondary terminal board is made of epoxy casting, the seal performance is more reliable.

Item
Unit

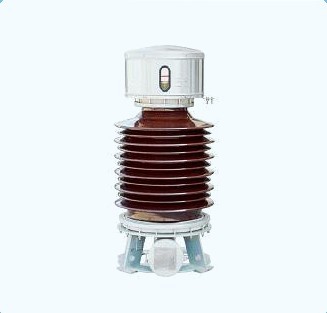

JDCF-66

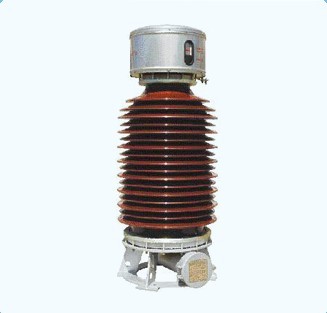

JDCF-110

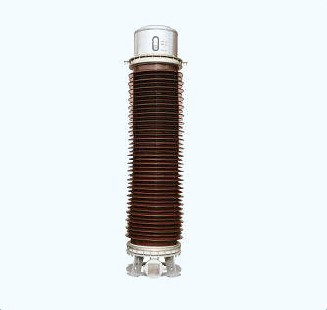

JDCF-220
Rated voltage
kV
66/√3
110/√3 132/√3
220/√3
Highest voltage
kV
72.5/√3
126/√3 145/√3
252/√3
Rated frequency
Hz
50/60
50/60
50/60
Accuracy

0.2 0.5 3P
0.2 0.5 3P
0.2 0.5 3P
Thermal limiting output
VA
2000
2000
2000
Creepage distance
mm
W1/1500
W2/1820
W3/2250
W1/2520
W2/3150
W3/3906
W1/5040
W2/6300
W3/7812
Power frequency withstand voltage
kV
140(160)
185(200)(230)
395(460)
Lightning impulse withstand voltage
kV
325(350)
450(480)(550)
950(1050)
