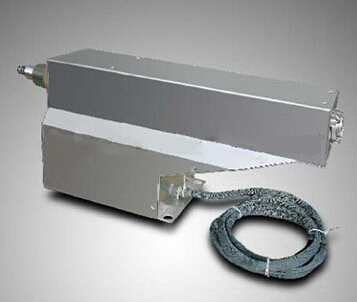

voltage transformer002 using for CGIS

FOB Price: US $ 903 - 1,105 / Piece
Min.Order Quantity: 3 Piece/Pieces 3 pieces or more under discussion
Supply Ability: 40 Piece/Pieces per Month Accept small, big and mixed order
Port: Dalian
Payment Terms: L/C,T/T

Product Details

Quick Details Parameter

voltage class:20kV : 20kV
Structure: : casting,with residual winding and fuse,using for CGIS,with adapter
Main Material: : Epoxy resin, copper, Aluminum housing for external

Description

Quick Details


  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: DYH
  • Model Number: JDZX6-20R(CQ)
  • External Colour: Gray
  • Main Material: Epoxy resin, copper, Aluminum housing for external
  • Supplier Location: Dalian, China
  • Category: Power distribution, equipment
  • Phase: Single
  • Business Type: Manufacturer
  • Min. Order: One piece under discussion
  • Installation Site: Indoor
  • Structure: casting,with residual winding and fuse,using for CGIS,with adapter
  • Main customer: Siemens, Shanghai Tianling



Packaging & Delivery


PackagingDetails:

Export standard packages: 1. General products: 7 layers thick carton with protection material. If the goods are sent by air and it is small dimension, should be packed by cartons; if the goods are sent by sea, should be packed by wooden cases. 2. With protection material inside for all the packages, e.g. EPE, Cystosepiment, Plastic film, Corner-wrapping and so on. 3. Enhanced package for small order. 4. We can do the marks as per different requirements of customers.
Delivery Detail: About 18-25 days after receiving the purchase order



Specifications


1.voltage transformer
2.Model:JDZX6-20R(CQ)
3.voltage class:20kV
4.indoor,casting type,single phase,with residual winding

JDZX6-20R(CQ) Type

Voltage Transformer

 1.voltage transformer
2.Model:JDZX6-20R(CQ)
3.voltage class:20kV
4.indoor,casting type,single phase,with residual winding,using for CGIS,with fuse protection

Type

Rated transformation

(kV)

Accuracy class or accuracy classes combination

Rated output

(VA)

Thermal limiting output

(VA)

Rated insulation level

(kV)

Rated frequency

(Hz)

JDZX6-20R(CQ)

20/V3/0.1/V3/0.1/3

0.2/6P(3P)

0.5/6P(3P)

1/6P(3P)

30/90

70/90

120/90

300

   24/65/125

50-60

24/65/125

24/65/125
