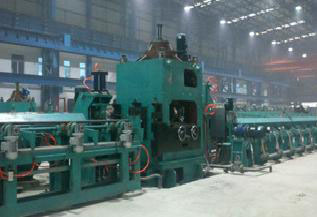

• straightening machine

straightening machine

1. Practical 2. High precision 3. Process stability Please contact:wangxun124@163.com

Product Details

Quick Details

Description

Specification
JY80
Raw

Material



Diameter Range(mm)
(excluding drawingmaterial)
Tensile Strength σb≤450(M pa)
Φ20≤d≤Φ80(L ≥2000)
Tensile Strength σb≤1000(M pa)
Φ20≤d≤Φ75(L ≥2000)
Surface Hardness
≤HB380(≤HRC42)
Straightness(mm/m)
Bright Steel ≤3
Diameter Tolerance
Bright Steel≤IT10
Circular Degree
d≤50
≤50% of diameter tolerance
50<d≤80
≤65% of diameter tolerance
d>80
≤70% of diameter tolerance
Surface Roughness(Ra)
Bright Steel≤3.2mm~6.3mm


Finished

Products

Straightness(mm/m)
Bright Steel≤0.40
Diameter Tolerance
Bright Steel≤IT8
Surface Roughness(Ra)
Bright Steel≤0.8μm
Roller Quantity (Pcs)
2
Roller Diameter (mm)
Φ335
Straightening Feeding Speed (m/min)
2~14
Main Machine Motor Power (KW)
45 X 2
Lifting Motor Power (KW)
3
Outline Dimensions
(Length*Width*Height)
(for your reference)
Main Machine   8.7mX3.3mX3.2m
Full Set(including auxiliary machine)15.8mX5.5mX3.0m
Weight
(for your reference)
Main Machine 20.0 T
Full Set(including auxiliary machine) 26.0 T
Total Capacity(for your reference) (KW)
100
Compressed Air Source(user prepare by themselves)
0.5~0.8MPa,3m3/min,two-stage oil-waterseparator



Company Profile

Haige Machine Tools Co., Ltd. is a manufacturer of straightening machines and centerless turning machines with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Bars of various materials, wire processing and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
